066322 DODGE - B1U-SD-315


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 066322 DODGE - B1U-SD-315
Category - Special Duty B-1 Units (Customer Supplied Housing)
Shaft Size (inch) - 3.9375
Part Name - B1U-SD-315
Approximate Weight (lbs) - 94

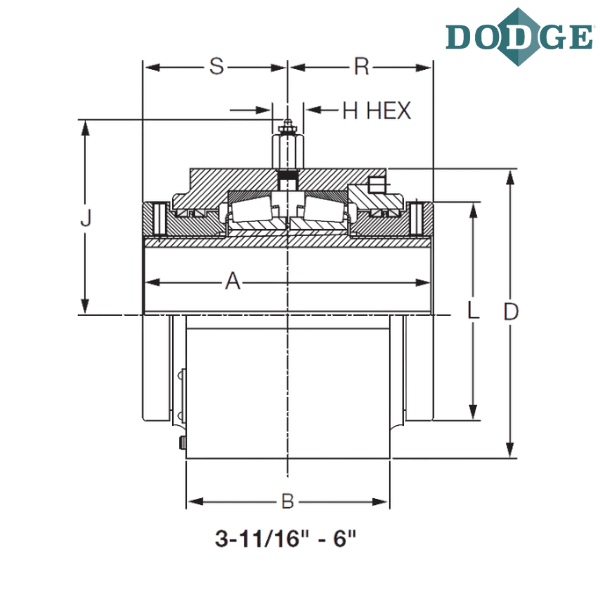

Length Through Bore (A) inch - 8.5
Overall Width (B) inch - 6.25
D (inch) - 9.250 (+.000 -.002”)
Hex (H) inch - 0.75
J (inch) - 6.13
L (inch) - 6.25
R (inch) - 4.25
S (inch) - 4.25

Notes :
B1U - B-1 Unit, Cast Iron
SD - Special Duty
