Description
Brand - DODGE

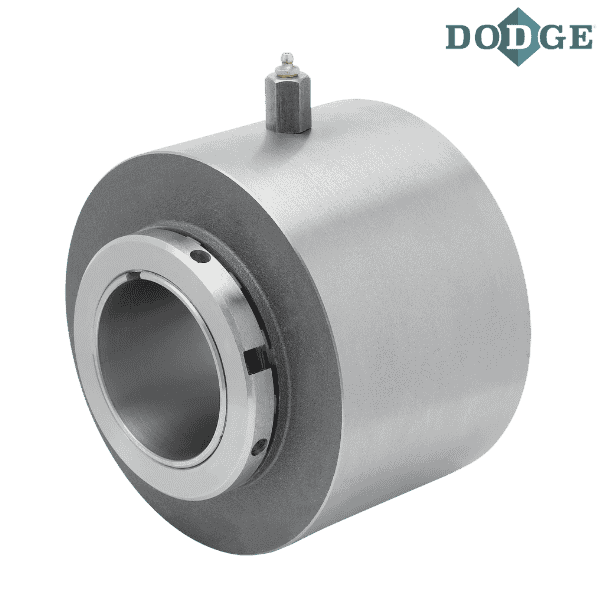

Item Number - 066321 DODGE - B1U-SD-307
Category - Special Duty B-1 Units (Customer Supplied Housing)
Shaft Size (inch) - 3.4375
Part Name - B1U-SD-307
Approximate Weight (lbs) - 47

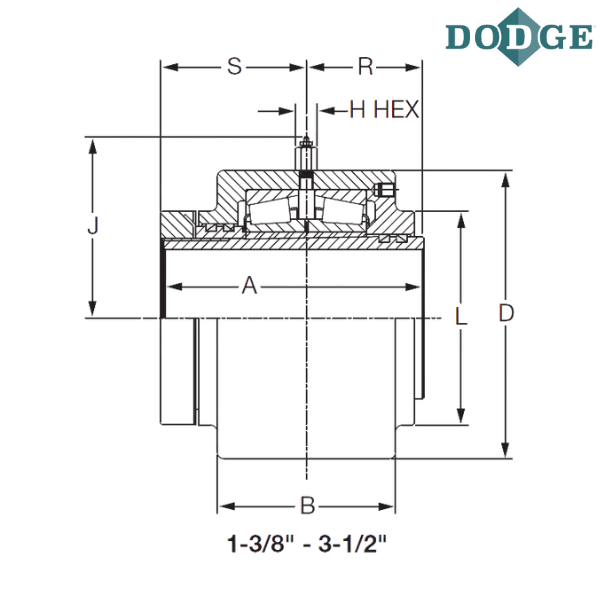

Length Through Bore (A) inch - 6.38
Overall Width (B) inch - 5
D (inch) - 7.750 (+.000 -.002”)
Hex (H) inch - 0.75
J (inch) - 5.38
L (inch) - 5.06
R (inch) - 2.94
S (inch) - 3.44
Notes :
B1U - B-1 Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
