Description
Brand - DODGE
Item Number - 066320 DODGE - B1U-SD-215
Category - Special Duty B-1 Units (Customer Supplied Housing)
Shaft Size (inch) - 2.9375
Part Name - B1U-SD-215
Approximate Weight (lbs) - 29

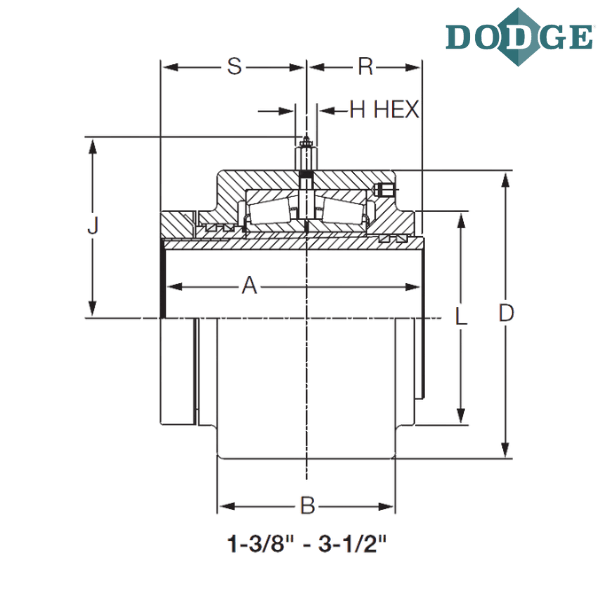

Length Through Bore (A) inch - 5.75
Overall Width (B) inch - 4.44
D (inch) - 6.500 (+.000 -.002”)
Hex (H) inch - 0.75
J (inch) - 6.5
L (inch) - 4.44
R (inch) - 2.63
S (inch) - 3.13
Notes :
B1U - B-1 Unit, Cast Iron
SD - Special Duty

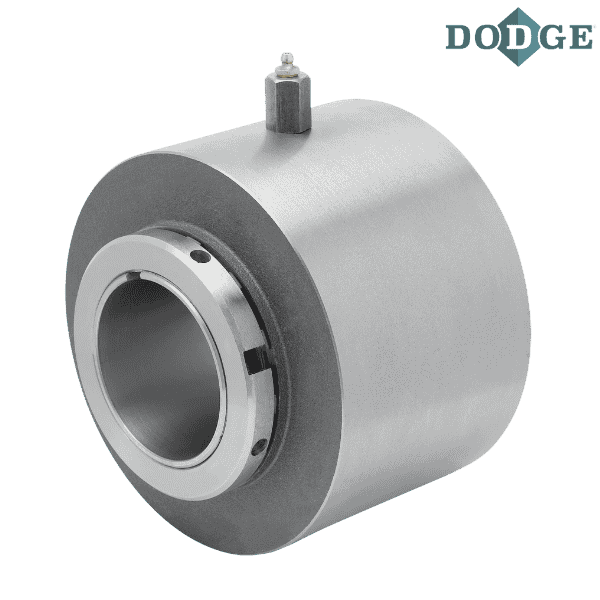

** Images are for representation purposes only
