Description
Brand - DODGE
Item Number - 066317 DODGE - B1U-SD-115
Category - Special Duty B-1 Units (Customer Supplied Housing)
Shaft Size (inch) - 1.9375
Part Name - B1U-SD-115
Approximate Weight (lbs) - 12

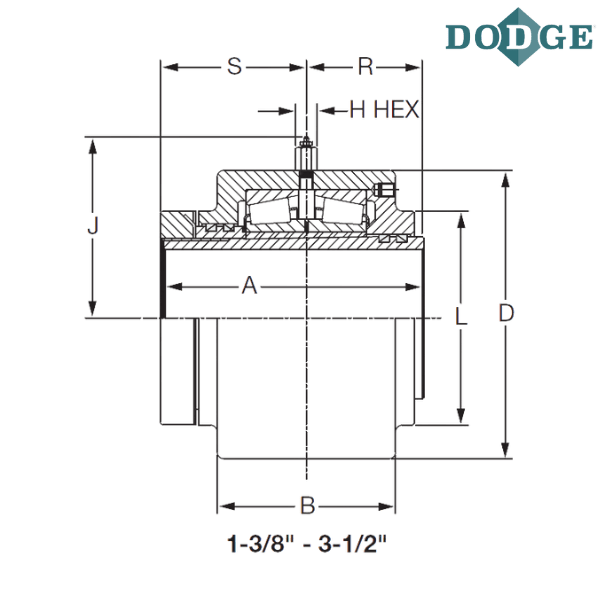

Length Through Bore (A) inch - 4.25
Overall Width (B) inch - 3.25
D (inch) - 4.750 (+.000 -.002”)
Hex (H) inch - 0.625
J (inch) - 4.75
L (inch) - 3.06
R (inch) - 1.94
S (inch) - 2.31
Notes :
B1U - B-1 Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
