Description
Brand - DODGE
Item Number - 066315 DODGE - B1U-SD-107
Category - Special Duty B-1 Units (Customer Supplied Housing)
Shaft Size (inch) - 1.4375
Part Name - B1U-SD-107
Approximate Weight (lbs) - 7

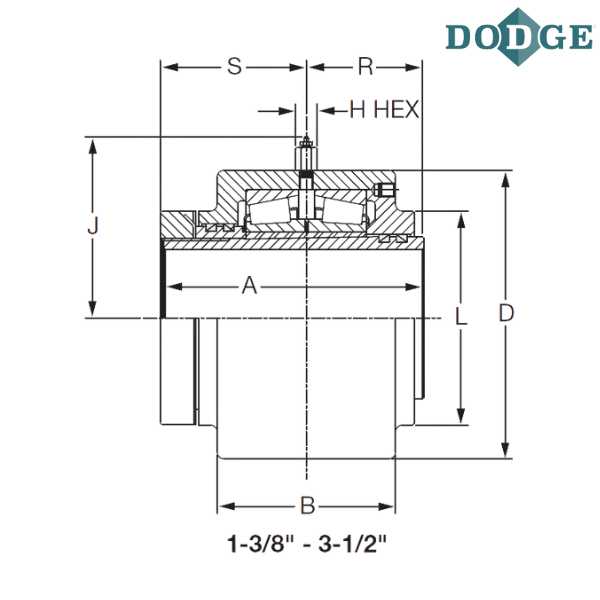

Length Through Bore (A) inch - 4
Overall Width (B) inch - 2.69
D (inch) - 3.875 (+.000 -.002”)
Hex (H) inch - 0.625
J (inch) - 3.06
L (inch) - 2.44
R (inch) - 1.81
S (inch) - 2.19
Notes :
B1U - B-1 Unit, Cast Iron
SD - Special Duty

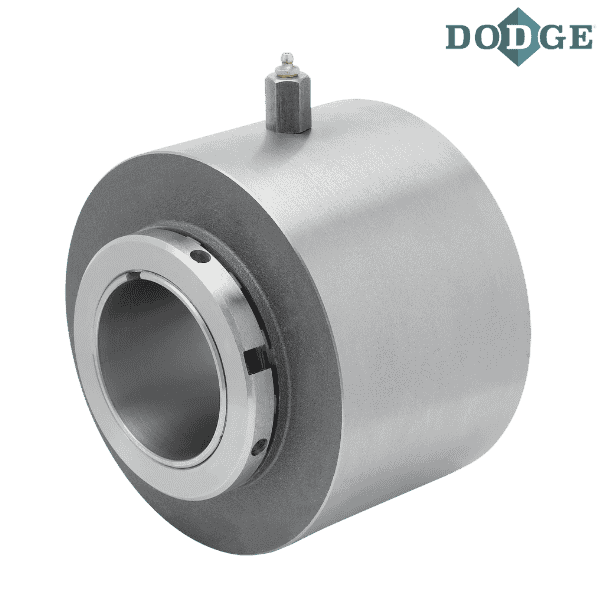

** Images are for representation purposes only
