066304 DODGE - P2B-SD-211

Brand - DODGE
Item Number - 066304 DODGE - P2B-SD-211
Category - 2-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 2.6875
Part Name - P2B-SD-211
Approximate Weight (lbs) - 84

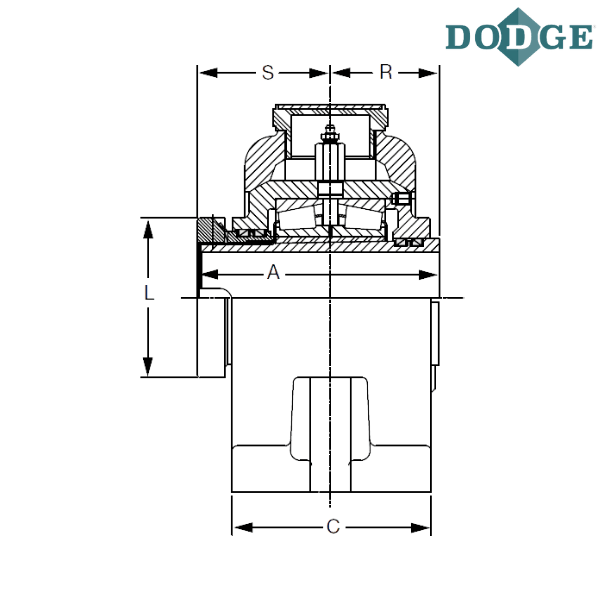

Length Through Bore (A) inch - 5.75

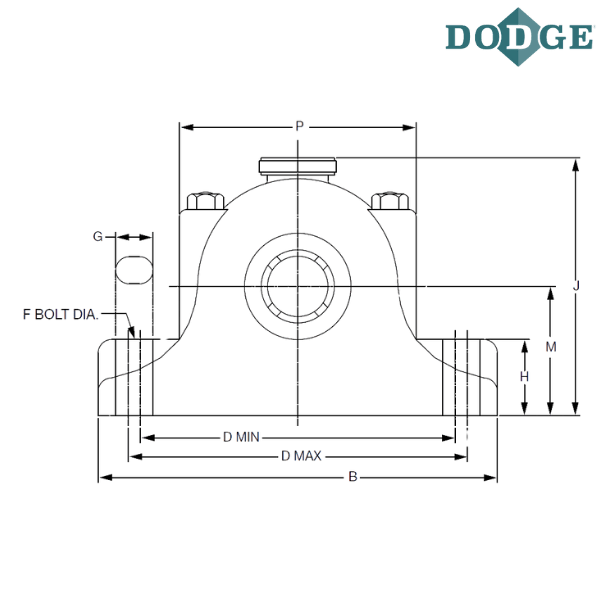

Overall Length (B) inch - 14.25
C (inch) - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 11
Bolt to Bolt Maximum Distance (D max) inch - 12.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.5
H (inch) - 3.75
Overall Height (J) inch - 9.88
L (inch) - 4.44
Base to Center Height (M) inch - 4.75
P (inch) - 8.69
R (inch) - 2.63
S (inch) - 3.13
Exp* (inch) - 0.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
SD - Special Duty
Gray Iron Non-Expansion - Furnished Unless Otherwise Specified

* Total Expansion for Expansion Bearing only

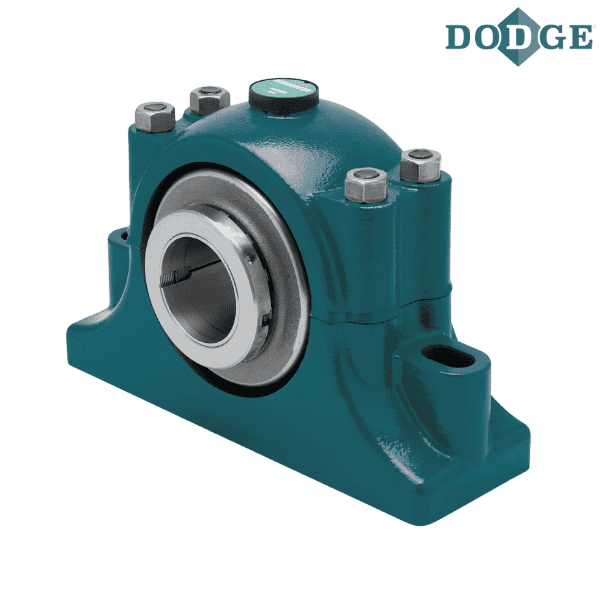

** Images are for representation purposes only
