Description
Brand - DODGE
Item Number - 066295 DODGE - S1U-SD-215
Category - Special Duty S-1 Units (Expansion)
Shaft Size (inch) - 2.9375
Part Name - S1U-SD-215
Approximate Weight (lbs) - 29

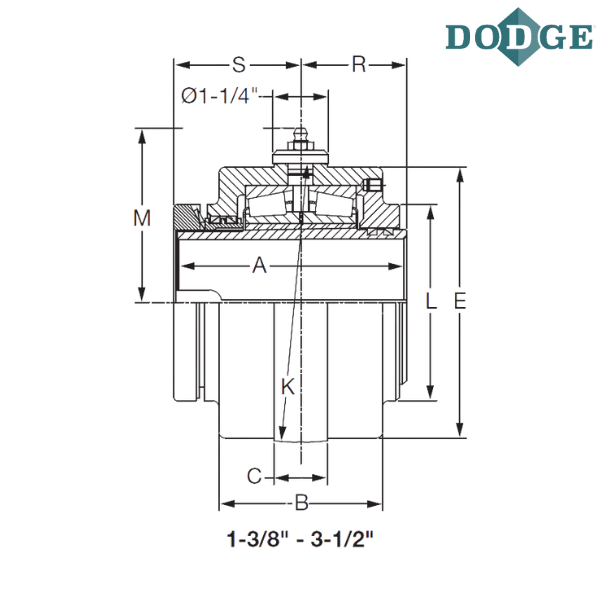

Length Through Bore (A) inch - 5.75
Overall Width (B) inch - 4.44
C (inch) - 1
E (inch) - 6.19
K (inch) - 6.562 (+.000 -.002”)
L (inch) - 4.44
M (inch) - 4.19
R (inch) - 2.63
S (inch) - 3.13
Notes :
S1U - S-1 unit, Cast Iron
SD - Special Duty

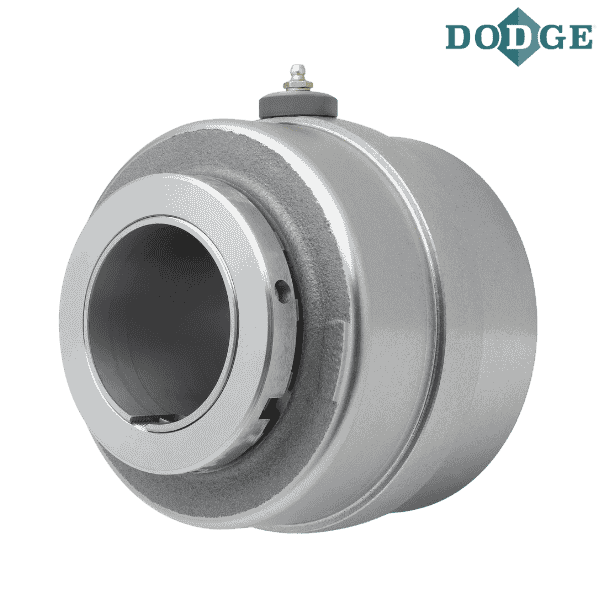

** Images are for representation purposes only
