Description
Brand - DODGE

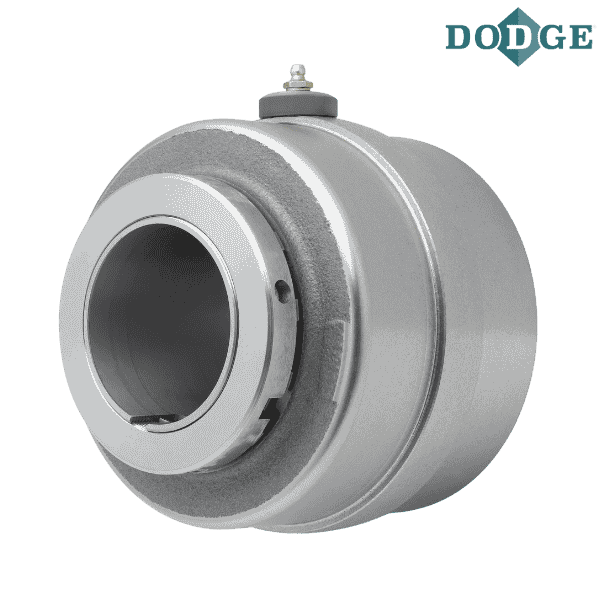

Item Number - 066294 DODGE - S1U-SD-207
Category - Special Duty S-1 Units (Expansion)
Shaft Size (inch) - 2.4375
Part Name - S1U-SD-207
Approximate Weight (lbs) - 20

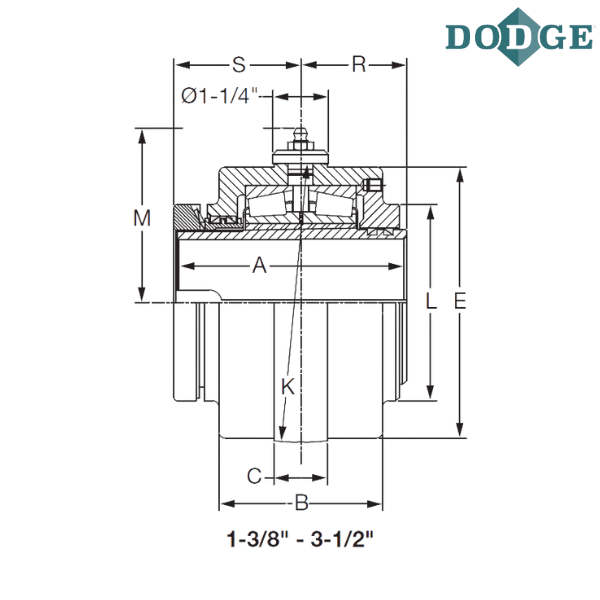

Length Through Bore (A) inch - 5.06
Overall Width (B) inch - 4
C (inch) - 1
E (inch) - 5.31
K (inch) - 5.687 (+.000 -.002”)
L (inch) - 3.81
M (inch) - 3.5
R (inch) - 2.31
S (inch) - 2.75
Notes :
S1U - S-1 unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
