Description
Brand - DODGE
Item Number - 066293 DODGE - S1U-SD-203
Category - Special Duty S-1 Units (Expansion)
Shaft Size (inch) - 2.1875
Part Name - S1U-SD-203
Approximate Weight (lbs) - 16

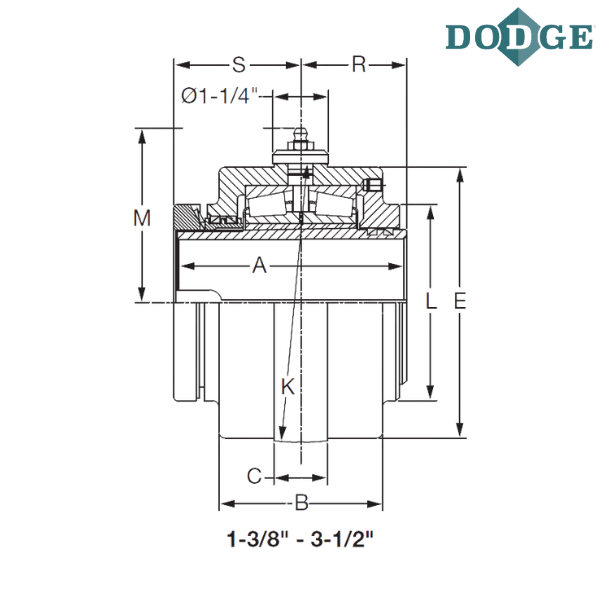

Length Through Bore (A) inch - 4.56
Overall Width (B) inch - 3.5
C (inch) - 0.88
E (inch) - 5.06
K (inch) - 5.375 (+.000 -.002”)
L (inch) - 3.44
M (inch) - 3.31
R (inch) - 2.06
S (inch) - 2.5
Notes :
S1U - S-1 unit, Cast Iron
SD - Special Duty

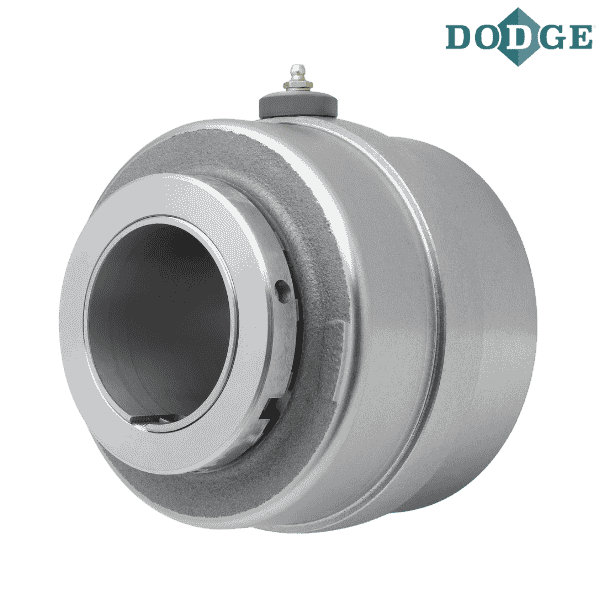

** Images are for representation purposes only
