Description
Brand - DODGE

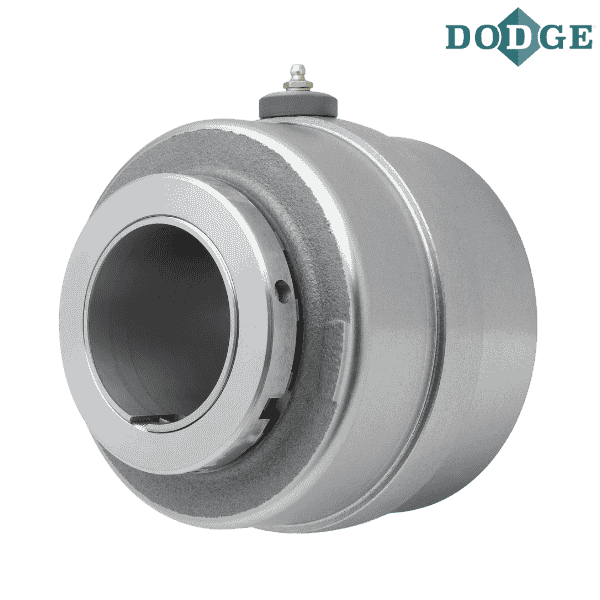

Item Number - 066292 DODGE - S1U-SD-115
Category - Special Duty S-1 Units (Expansion)
Shaft Size (inch) - 1.9375
Part Name - S1U-SD-115
Approximate Weight (lbs) - 12

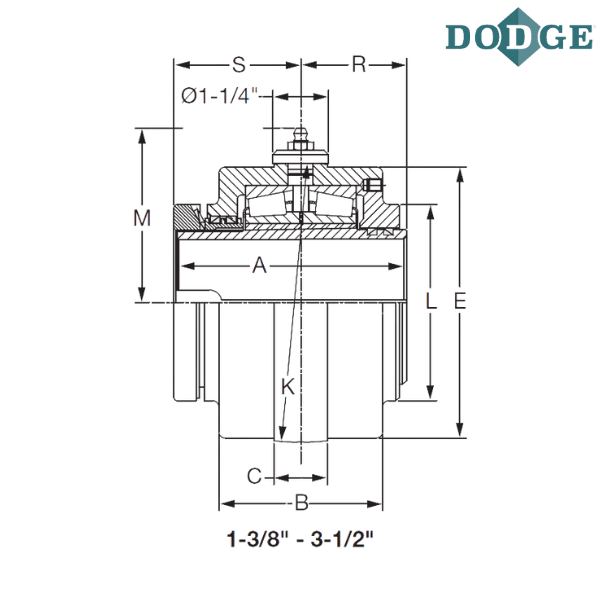

Length Through Bore (A) inch - 4.25
Overall Width (B) inch - 3.25
C (inch) - 0.88
E (inch) - 4.5
K (inch) - 4.812 (+.000 -.002”)
L (inch) - 3.06
M (inch) - 3.06
R (inch) - 1.94
S (inch) - 2.31
Notes :
S1U - S-1 unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
