Description
Brand - DODGE
Item Number - 066291 DODGE - S1U-SD-111
Category - Special Duty S-1 Units (Expansion)
Shaft Size (inch) - 1.6875
Part Name - S1U-SD-111
Approximate Weight (lbs) - 10

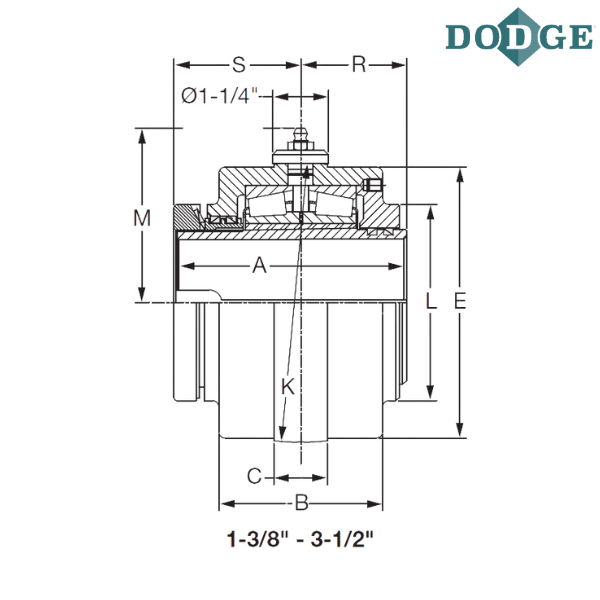

Length Through Bore (A) inch - 4.13
Overall Width (B) inch - 3.13
C (inch) - 0.75
E (inch) - 4.13
K (inch) - 4.438 (+.000 -.002”)
L (inch) - 2.81
M (inch) - 2.88
R (inch) - 1.88
S (inch) - 2.25
Notes :
S1U - S-1 unit, Cast Iron
SD - Special Duty

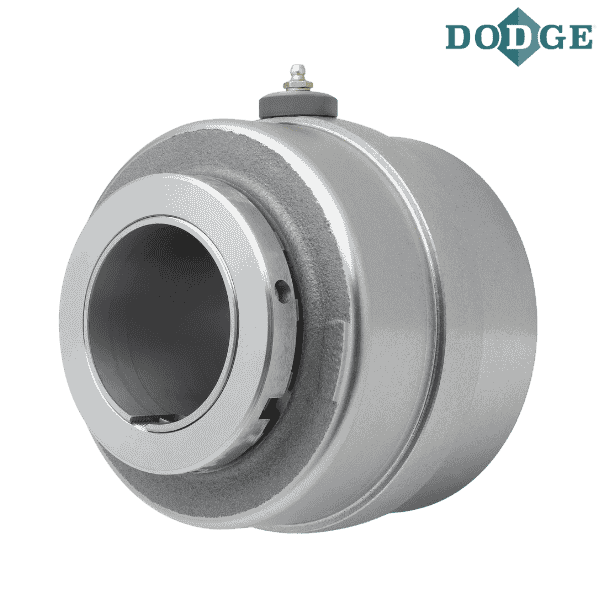

** Images are for representation purposes only
