Description
Brand - DODGE

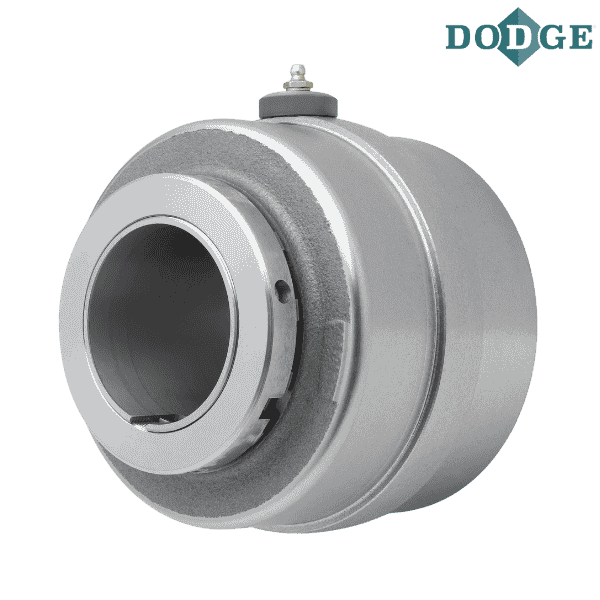

Item Number - 066290 DODGE - S1U-SD-107
Category - Special Duty S-1 Units (Expansion)
Shaft Size (inch) - 1.4375
Part Name - S1U-SD-107
Approximate Weight (lbs) - 7

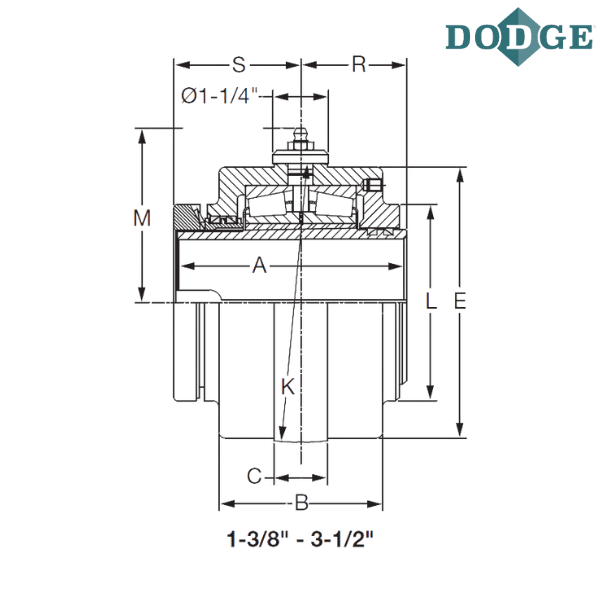

Length Through Bore (A) inch - 4
Overall Width (B) inch - 2.69
C (inch) - 0.75
E (inch) - 3.75
K (inch) - 4.062 (+.000 -.002”)
L (inch) - 2.44
M (inch) - 2.69
R (inch) - 1.81
S (inch) - 2.19
Notes :
S1U - S-1 unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
