Description
Brand - DODGE

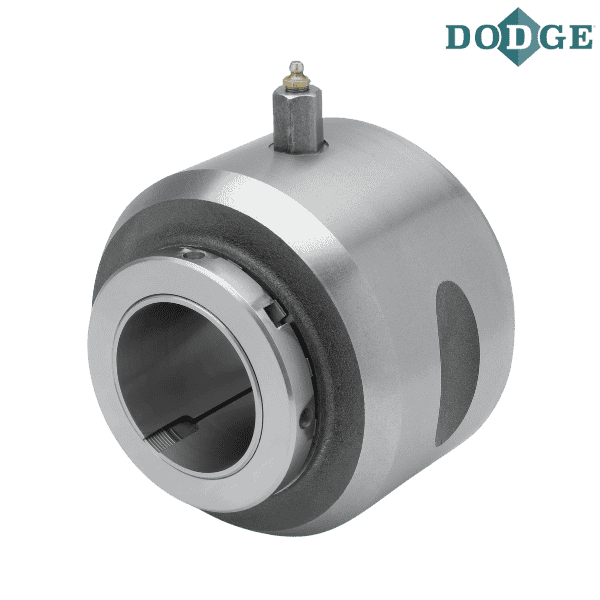

Item Number - 066289 DODGE - DU-SD-407
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 4.4375
Part Name - DU-SD-407
Approximate Weight (lbs) - 116

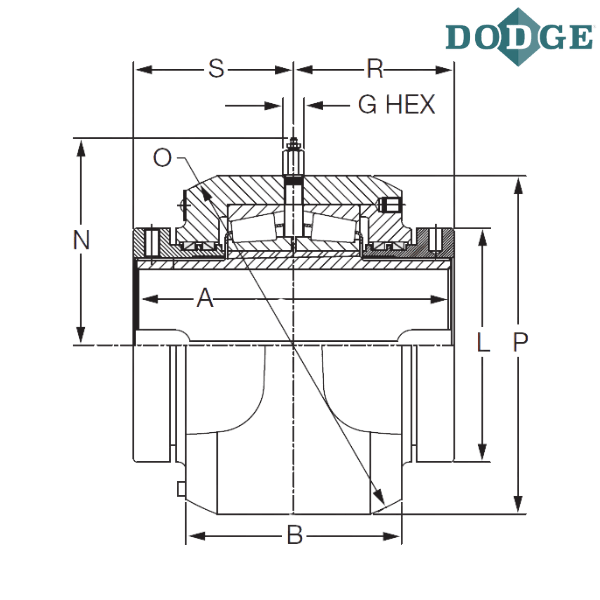

Length Through Bore (A) inch - 9.5
Overall Width (B) inch - 6.63
Hex (G) inch - 0.75
L (inch) - 7.25
N (inch) - 6.69
O (inch) - 11.125 (+.000 -.003”)
P (inch) - 10.06
R (inch) - 4.75
S (inch) - 4.75
Notes :
DU - D Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
