Description
Brand - DODGE
Item Number - 066288 DODGE - DU-SD-315
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 3.9375
Part Name - DU-SD-315
Approximate Weight (lbs) - 94

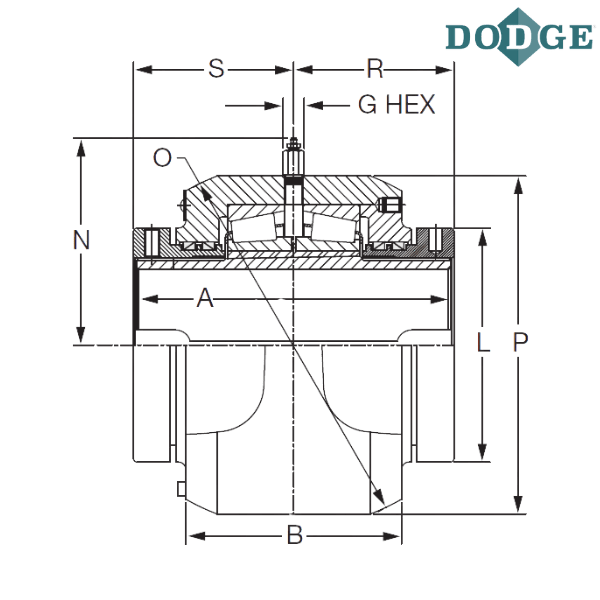

Length Through Bore (A) inch - 8.5
Overall Width (B) inch - 6.25
Hex (G) inch - 0.75
L (inch) - 6.25
N (inch) - 6.38
O (inch) - 10.250 (+.000 -.003”)
P (inch) - 9.75
R (inch) - 4.25
S (inch) - 4.25
Notes :
DU - D Unit, Cast Iron
SD - Special Duty

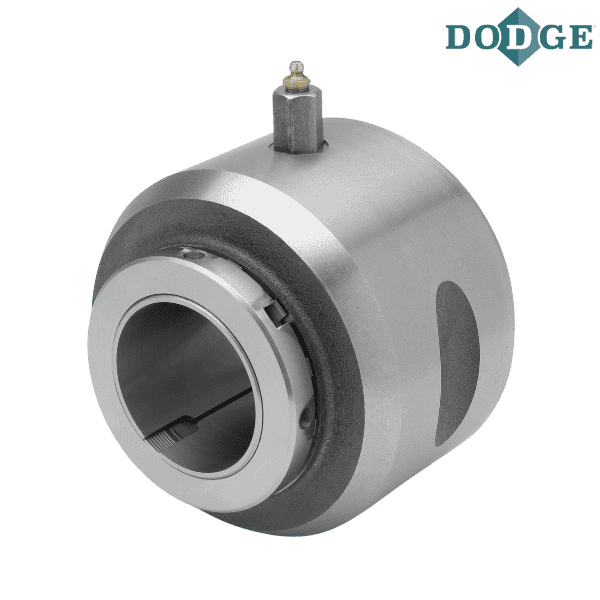

** Images are for representation purposes only
