Description
Brand - DODGE

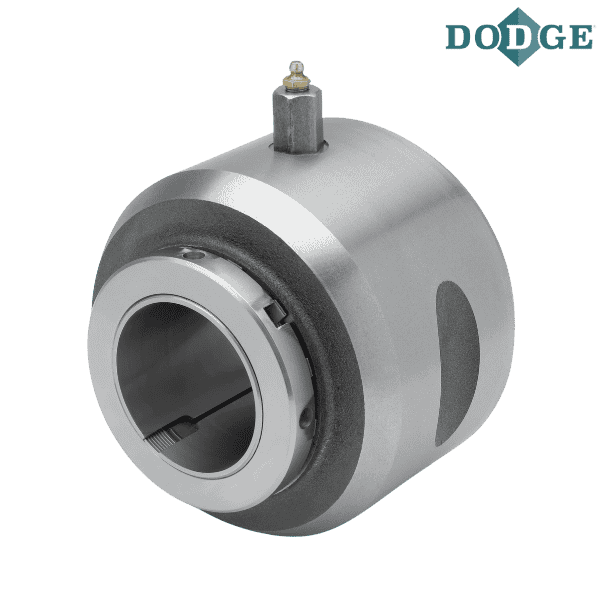

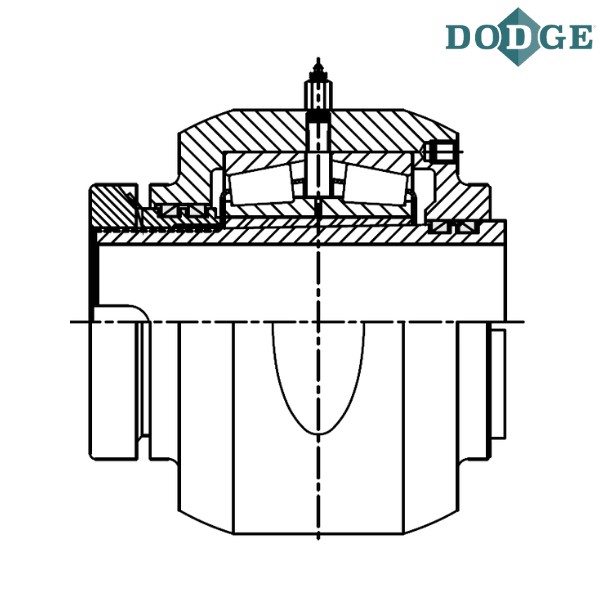

Item Number - 066287 DODGE - DU-SD-307
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 3.4375
Part Name - DU-SD-307
Approximate Weight (lbs) - 47

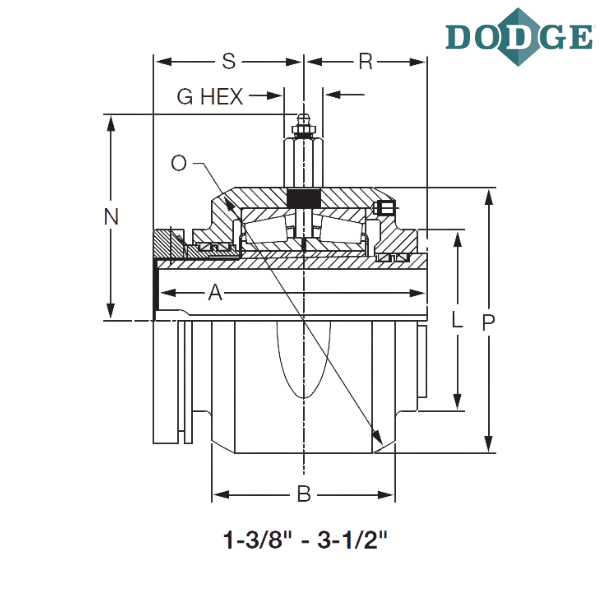

Length Through Bore (A) inch - 6.38
Overall Width (B) inch - 5
Hex (G) inch - 0.75
L (inch) - 5.06
N (inch) - 5.56
O (inch) - 8.625 (+.000 -.003”)
P (inch) - 8
R (inch) - 2.94
S (inch) - 3.44
Notes :
DU - D Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
