Description
Brand - DODGE

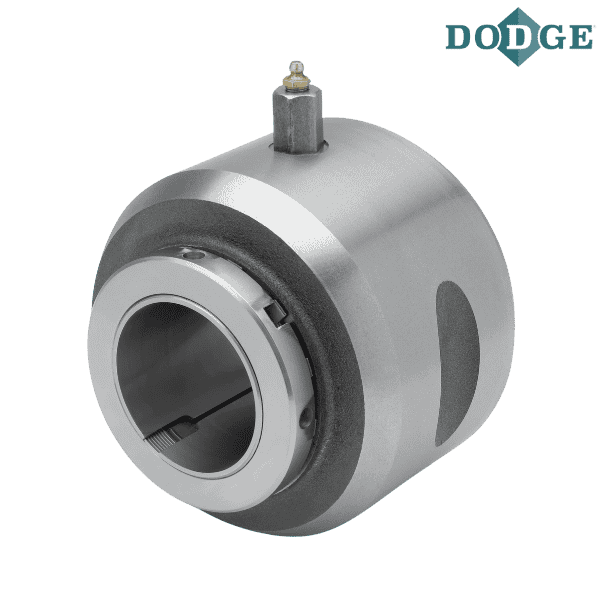

Item Number - 066284 DODGE - DU-SD-207
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 2.4375
Part Name - DU-SD-207
Approximate Weight (lbs) - 20

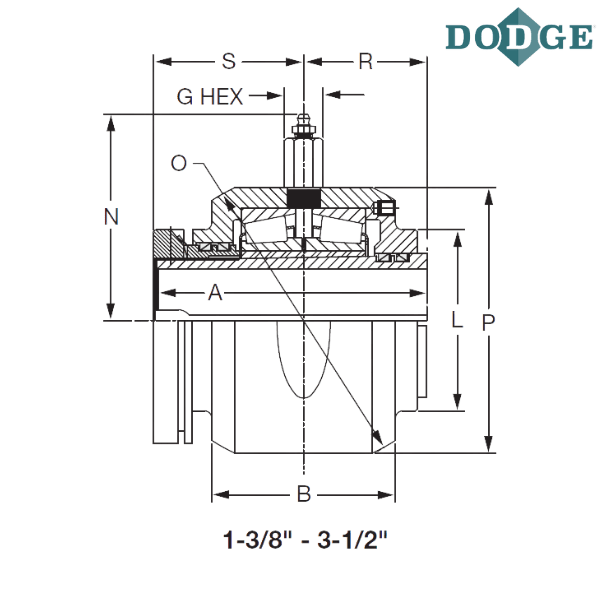

Length Through Bore (A) inch - 5.06
Overall Width (B) inch - 4
Hex (G) inch - 0.75
L (inch) - 3.81
N (inch) - 4.09
O (inch) - 6.375 (+.000 -.002”)
P (inch) - 5.69
R (inch) - 2.31
S (inch) - 2.75
Notes :
DU - D Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
