Description
Brand - DODGE
Item Number - 066283 DODGE - DU-SD-203
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 2.1875
Part Name - DU-SD-203
Approximate Weight (lbs) - 16

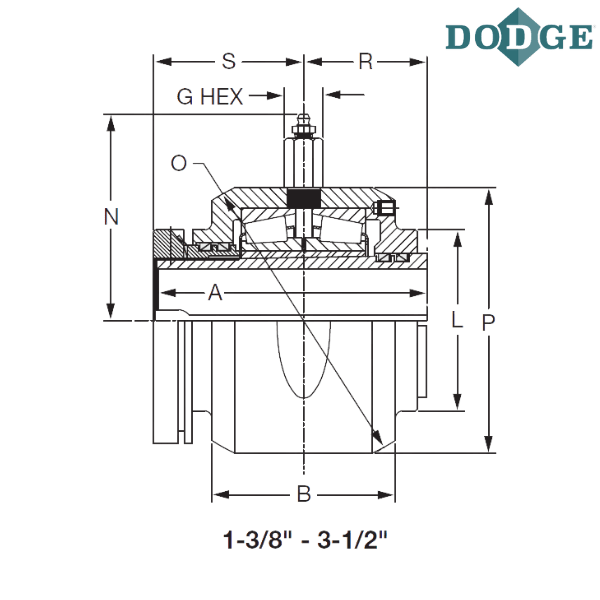

Length Through Bore (A) inch - 4.56
Overall Width (B) inch - 3.5
Hex (G) inch - 0.625
L (inch) - 3.44
N (inch) - 3.19
O (inch) - 6.000 (+.000 -.002”)
P (inch) - 5.38
R (inch) - 2.06
S (inch) - 2.5
Notes :
DU - D Unit, Cast Iron
SD - Special Duty

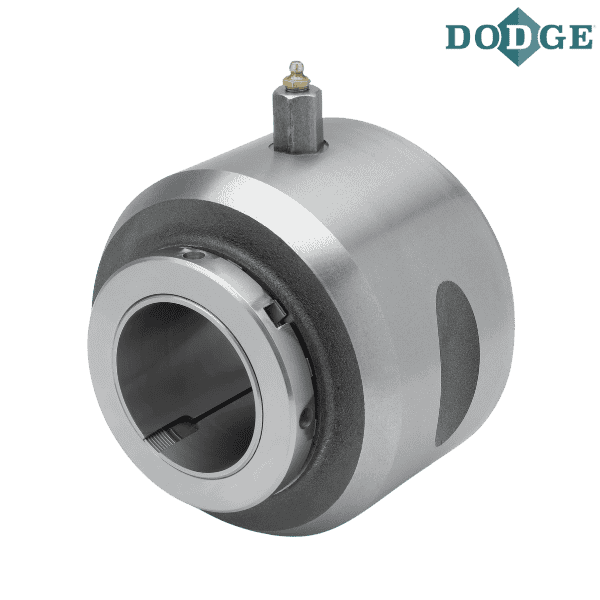

** Images are for representation purposes only
