Description
Brand - DODGE

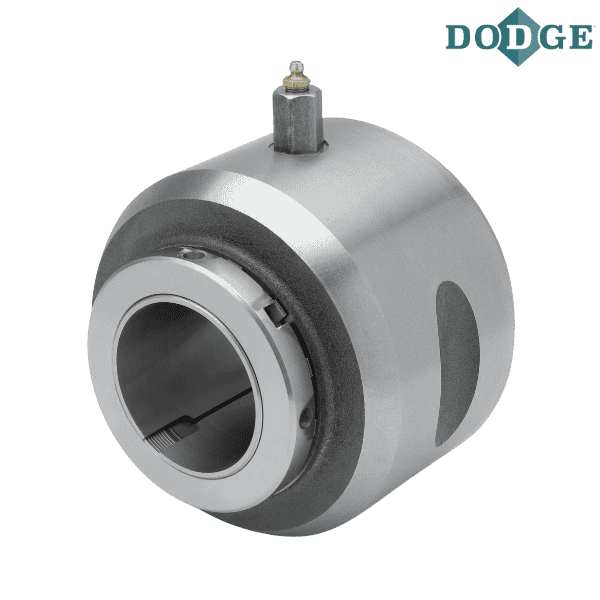

Item Number - 066282 DODGE - DU-SD-115
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 1.9375
Part Name - DU-SD-115
Approximate Weight (lbs) - 12

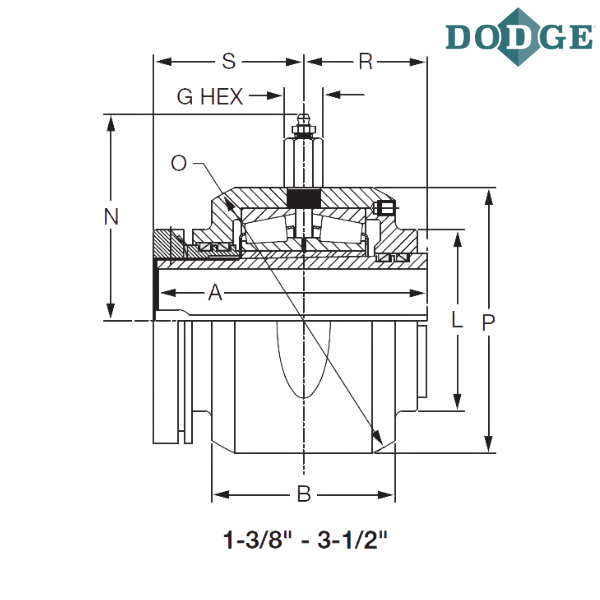

Length Through Bore (A) inch - 4.25
Overall Width (B) inch - 3.25
Hex (G) inch - 0.625
L (inch) - 3.06
N (inch) - 2.88
O (inch) - 5.313 (+.000 -.002”)
P (inch) - 4.75
R (inch) - 1.94
S (inch) - 2.31
Notes :
DU - D Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
