Description
Brand - DODGE

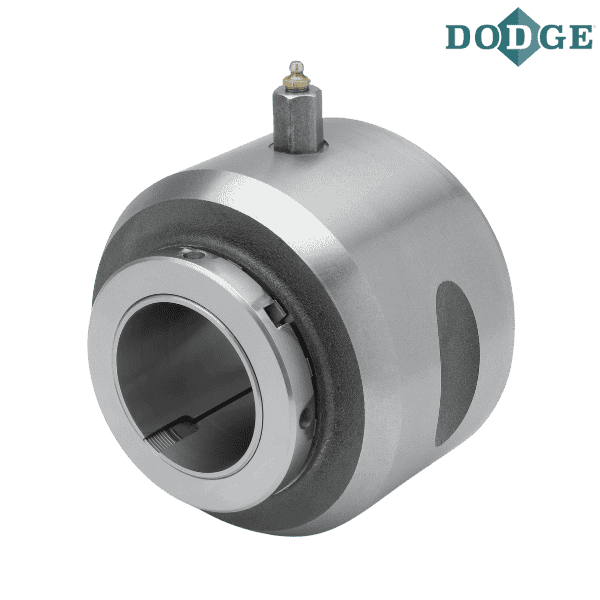

Item Number - 066280 DODGE - DU-SD-107
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 1.4375
Part Name - DU-SD-107
Approximate Weight (lbs) - 7

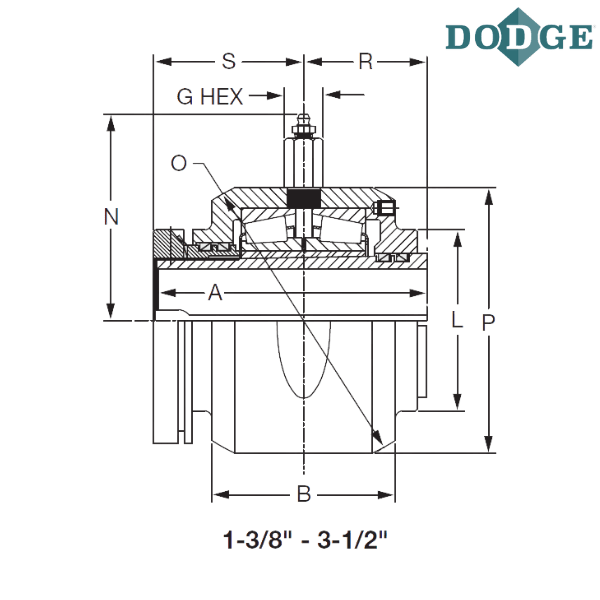

Length Through Bore (A) inch - 4
Overall Width (B) inch - 2.69
Hex (G) inch - 0.4375
L (inch) - 2.44
N (inch) - 2.5
O (inch) - 4.438 (+.000 -.002”)
P (inch) - 3.94
R (inch) - 1.81
S (inch) - 2.19
Notes :
DU - D Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
