Description
Brand - DODGE
Item Number - 066279 DODGE - DU-SD-211
Category - Special Duty D Units (Non-Expansion)
Shaft Size (inch) - 2.6875
Part Name - DU-SD-211
Approximate Weight (lbs) - 29

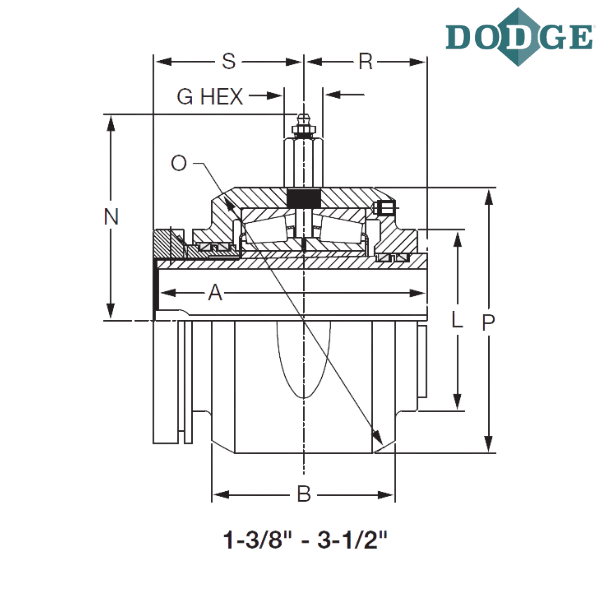

Length Through Bore (A) inch - 5.75
Overall Width (B) inch - 4.44
Hex (G) inch - 0.75
L (inch) - 4.44
N (inch) - 4.5
O (inch) - 7.313 (+.000 -.002”)
P (inch) - 6.5
R (inch) - 2.63
S (inch) - 3.13
Notes :
DU - D Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
