066269 DODGE - P2B-SD-303E

Brand - DODGE
Item Number - 066269 DODGE - P2B-SD-303E
Category - 2-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 3.1875
Part Name - P2B-SD-303E
Approximate Weight (lbs) - 120

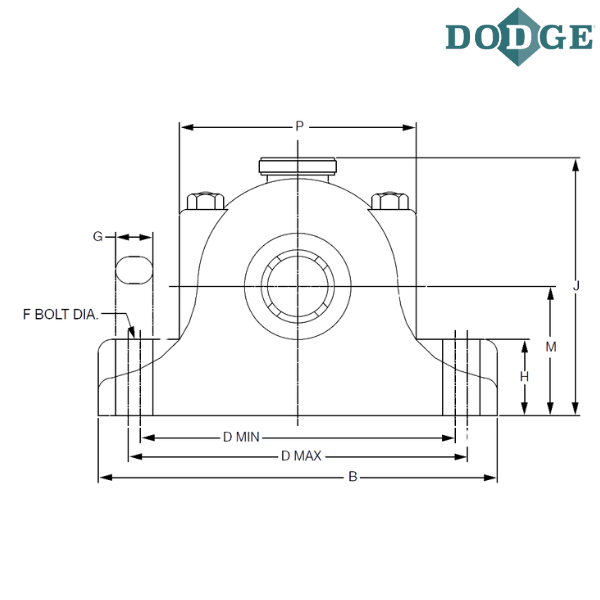

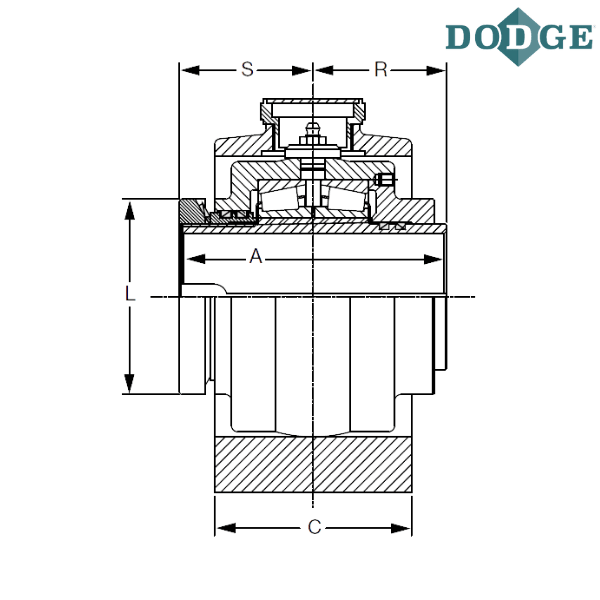

Length Through Bore (A) inch - 6.38
Overall Length (B) inch - 16.75
C (inch) - 5.5
Bolt to Bolt Minimum Distance (D min) inch - 13.25
Bolt to Bolt Maximum Distance (D max) inch - 14.25
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.5
H (inch) - 4
Overall Height (J) inch - 11.38
L (inch) - 5.06
Base to Center Height (M) inch - 5.5
P (inch) - 11.25
R (inch) - 2.94
S (inch) - 3.44
Exp* (inch) - 0.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
SD - Special Duty
E - Expansion Type Bearing
Gray Iron Expansion - 4-Bolt Caps

* Total Expansion for Expansion Bearing only

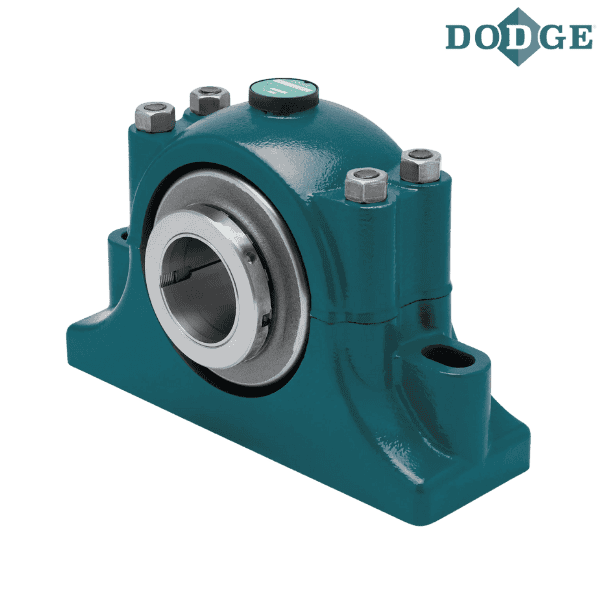

** Images are for representation purposes only
