066258 DODGE - P2B-SD-207E

Brand - DODGE
Item Number - 066258 DODGE - P2B-SD-207E
Category - 2-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 2.4375
Part Name - P2B-SD-207E
Approximate Weight (lbs) - 60

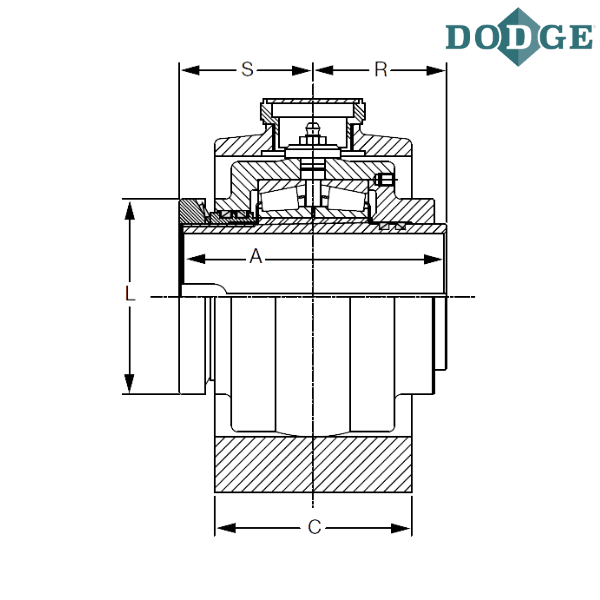

Length Through Bore (A) inch - 5.06

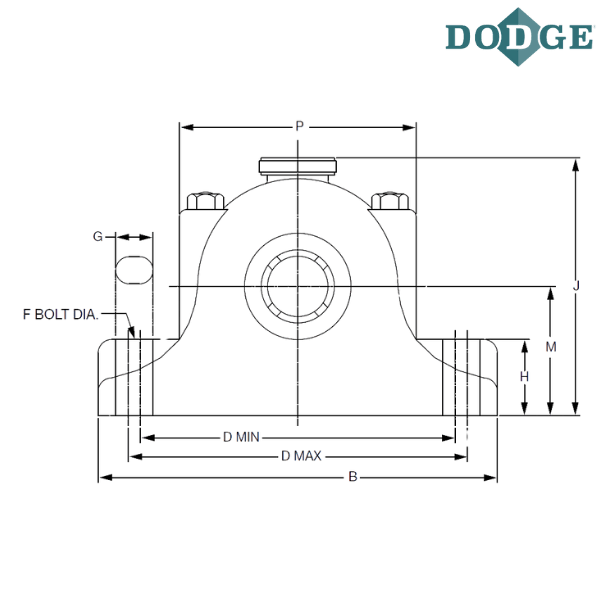

Overall Length (B) inch - 13.25
C (inch) - 4.25
Bolt to Bolt Minimum Distance (D min) inch - 10
Bolt to Bolt Maximum Distance (D max) inch - 11.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.5
H (inch) - 3
Overall Height (J) inch - 8.56
L (inch) - 3.81
Base to Center Height (M) inch - 4
P (inch) - 7.81
R (inch) - 2.31
S (inch) - 2.75
Exp* (inch) - 0.625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
SD - Special Duty
E - Expansion Type Bearing
Gray Iron Expansion - 4-Bolt Caps

* Total Expansion for Expansion Bearing only

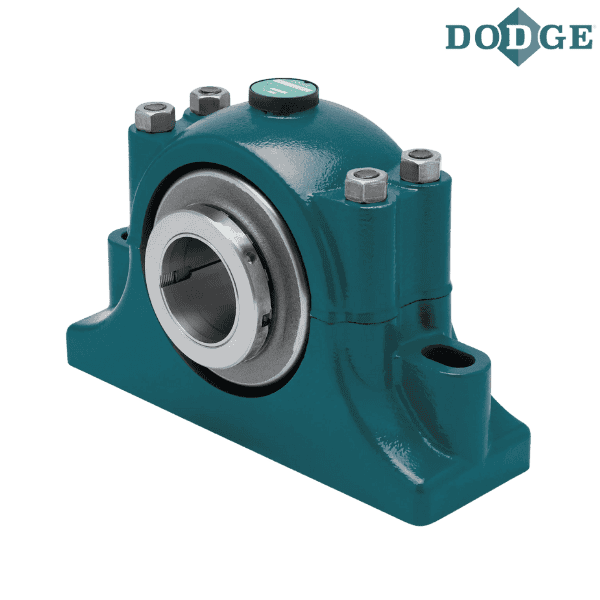

** Images are for representation purposes only
