066240 DODGE - P4B-SD-407

Brand - DODGE
Item Number - 066240 DODGE - P4B-SD-407
Category - 4-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 4.4375
Part Name - P4B-SD-407
Approximate Weight (lbs) - 296

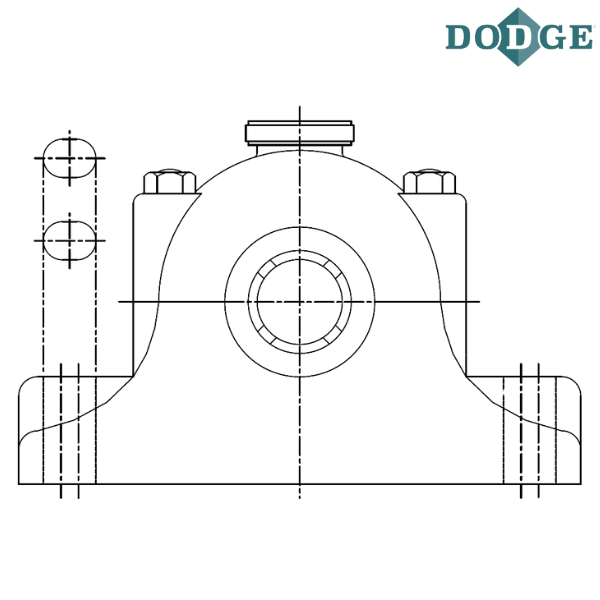

Length Through Bore (A) inch - 9.5
Overall Length (B*) inch - 20
C* (inch) - 7.5
Bolt to Bolt Minimum Distance (D min) inch - 15.5
Bolt to Bolt Maximum Distance (D max) inch - 17.5
Bolt Width (E) inch - 3.5
F-Bolt Diameter (inch) - 0.875
G* (inch) - 1.88
H* (inch) - 4
Overall Height (J) inch - 14.5
L (inch) - 7.25
Base to Center Height (M) inch - 7.25
P* (inch) - 12.63
R (inch) - 4.75
S (inch) - 4.75
Exp** (inch) - 0.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
SD - Special Duty

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts

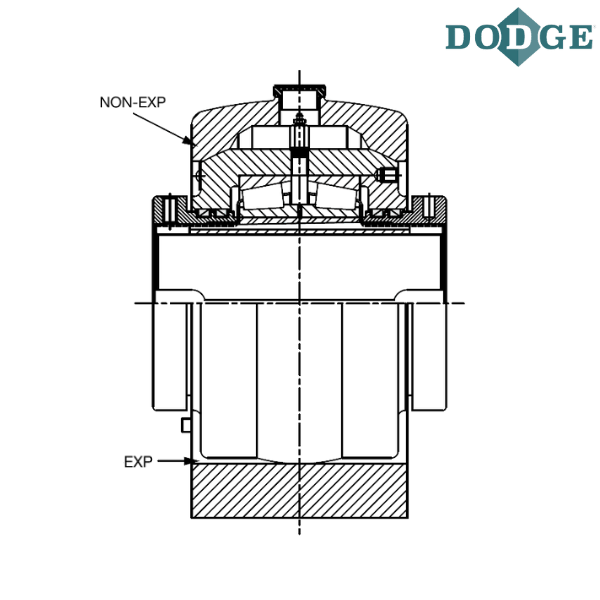

** Total Expansion for Expansion Bearing only

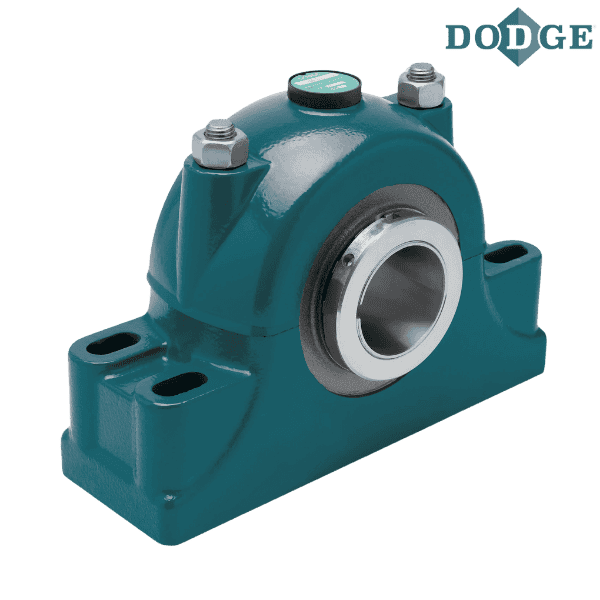

*** Images are for representation purposes only
