Description
Brand - DODGE
Item Number - 066214 DODGE - P2B-SD-107
Category - 2-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 1.4375
Part Name - P2B-SD-107
Approximate Weight (lbs) - 20

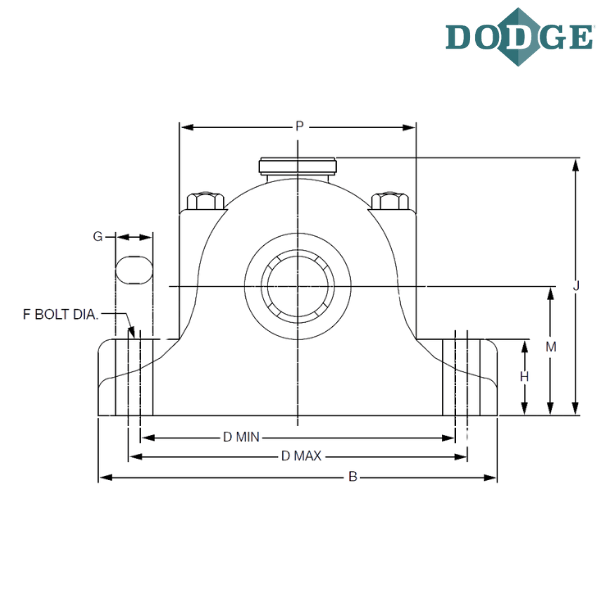

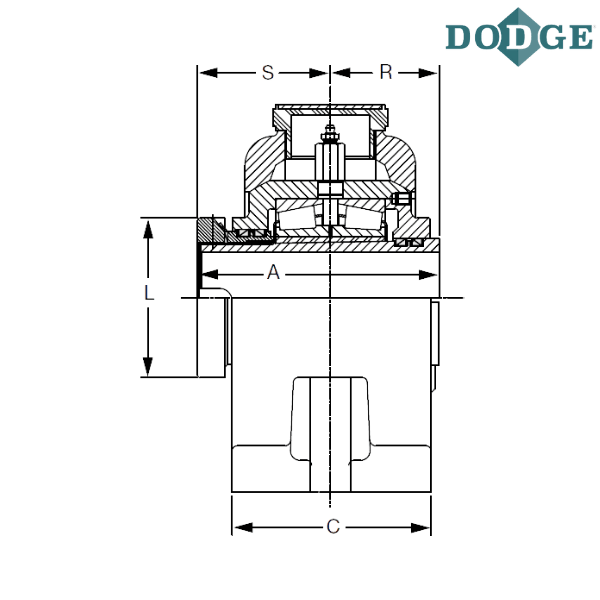

Length Through Bore (A) inch - 4
Overall Length (B) inch - 9
C (inch) - 3
Bolt to Bolt Minimum Distance (D min) inch - 6.88
Bolt to Bolt Maximum Distance (D max) inch - 7.63
F-Bolt Diameter (inch) - 0.5
G (inch) - 1
H (inch) - 2.13
Overall Height (J) inch - 6.25
L (inch) - 2.44
Base to Center Height (M) inch - 2.88
P (inch) - 5.88
R (inch) - 1.81
S (inch) - 2.19
Exp* (inch) - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
SD - Special Duty
Gray Iron Non-Expansion - Furnished Unless Otherwise Specified
* Total Expansion for Expansion Bearing only

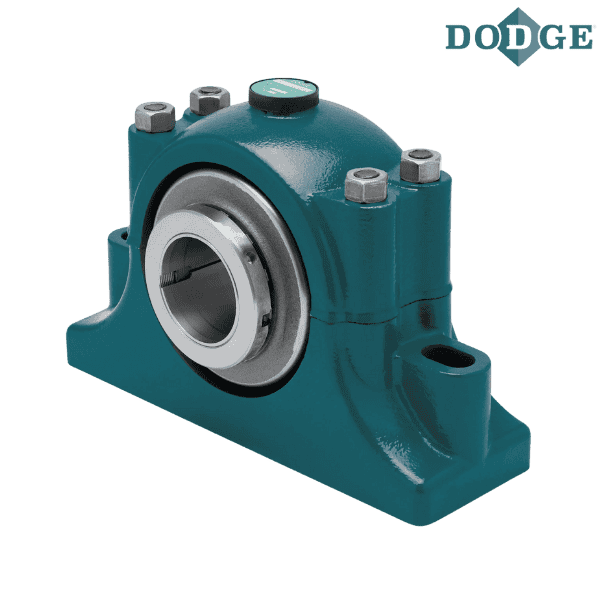

** Images are for representation purposes only
