065784 DODGE - P2B-DLAH-104

Brand - DODGE
Item Number - 065784 DODGE - P2B-DLAH-104
Category - D-LOK® Ball Bearings (DLMAH Medium Duty Air Handling Pillow Blocks)
Series - 207
Shaft Size (inch) - 1.25
Description - P2B-DLAH-104
Weight (lbs) - 4.9

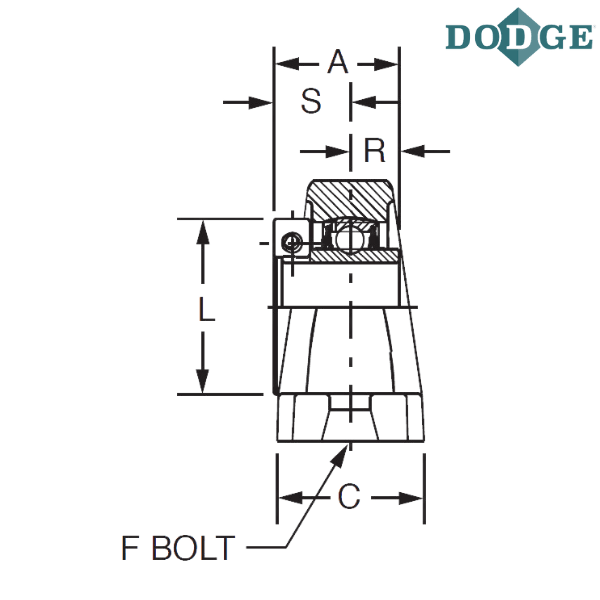

Length Through Bore (A) inch - 44.5

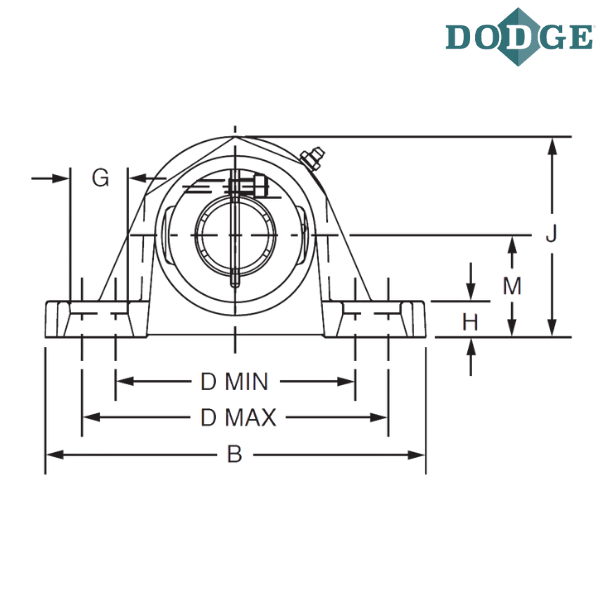

Overall Length (B) inch - 165.1
Width (C) inch - 44.5
Bolt to Bolt Minimum Distance (D min) inch - 118.9
Bolt to Bolt Maximum Distance (D max) inch - 138.2
F-Bolt Diameter (inch) - M12
G (mm) - 23.9
H (mm) - 18
Overall Height (J) inch - 95.3
L (mm) - 68.3
Base to Center Height (M) inch - 47.6
R (mm) - 17
S (mm) - 27.4

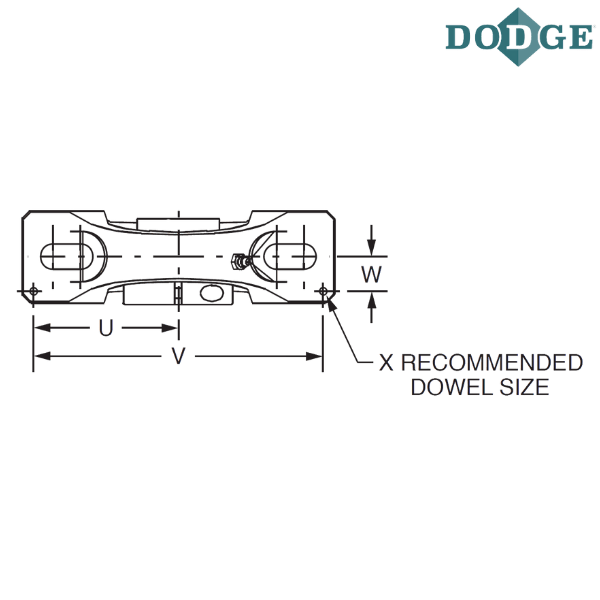

U (mm) - 73.9
V (mm) - 147.8
W (mm) - 14.2
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

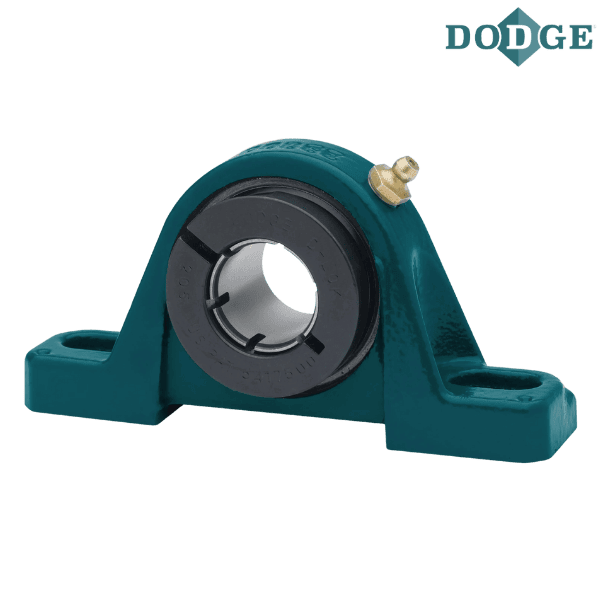

P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
AH - Air handling

** Images are for representation purposes only
