065776 DODGE - P2B-GTH-25M-E

Brand - DODGE
Item Number - 065776 DODGE - P2B-GTH-25M-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 205
Shaft Size (mm) - 25
Description - P2B-GTH-25M-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 065777
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-05-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136554
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-05-25M-D
Weight (kg) - 1.7

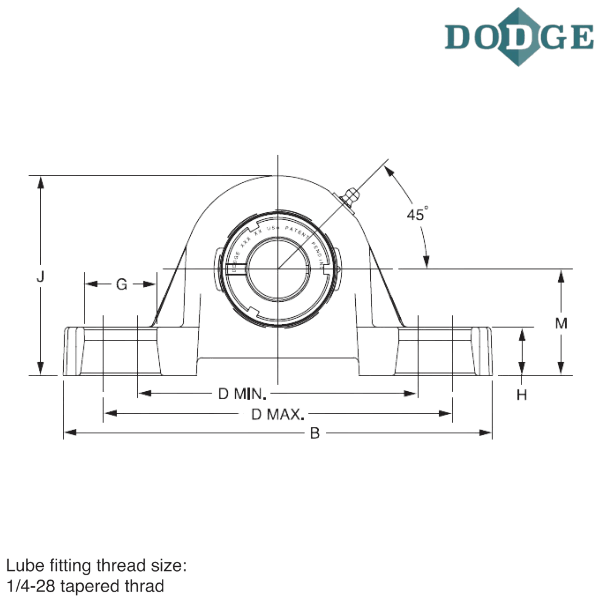

Length Through Bore (A) mm - 37.1
Overall Length (B) mm - 158.8
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 108
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 19.1
Overall Height (J) mm - 84.1
L (mm) - 45.7
Base to Center Height (M) mm - 42.9
R (mm) - 12.2
S (mm) - 24.9
Total Expansion (T) mm - 4.1
U (mm) - 73.2
V (mm) - 146.3
W (mm) - 14.2
X (mm) - 3
Z (mm) - 25.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
E - Expansion

** Images are for representation purposes only
