065771 DODGE - F2BZ-DL-200

Brand - DODGE
Item Number - 065771 DODGE - F2BZ-DL-200

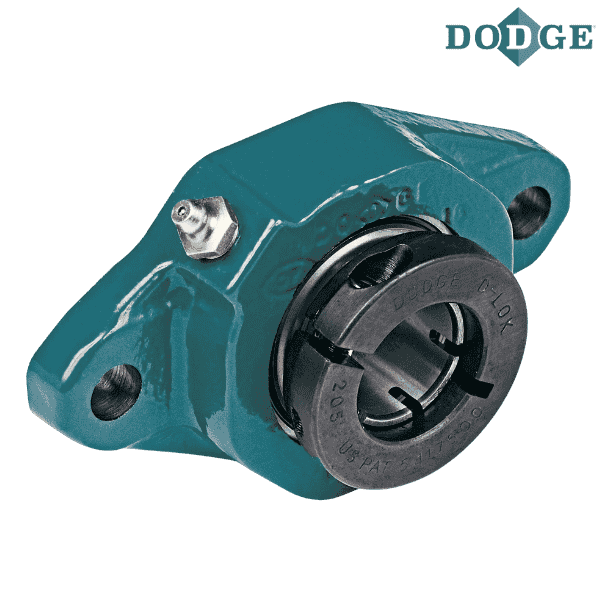

Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 210
Shaft Size (inch) - 2
Description - F2BZ-DL-200
Weight (lbs) - 5.9

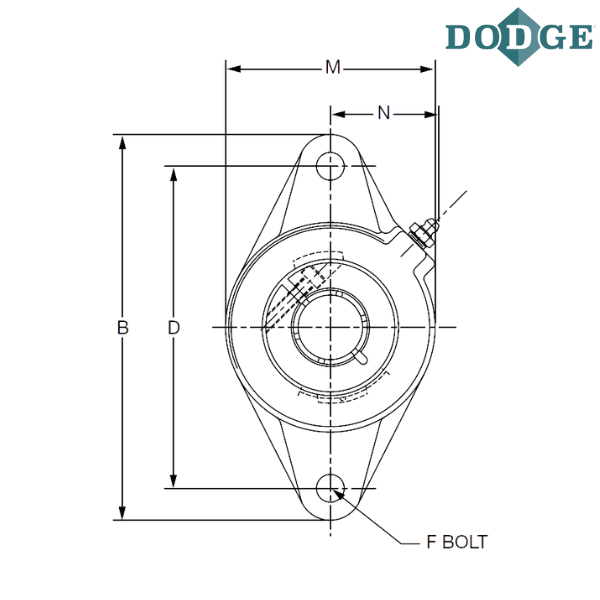

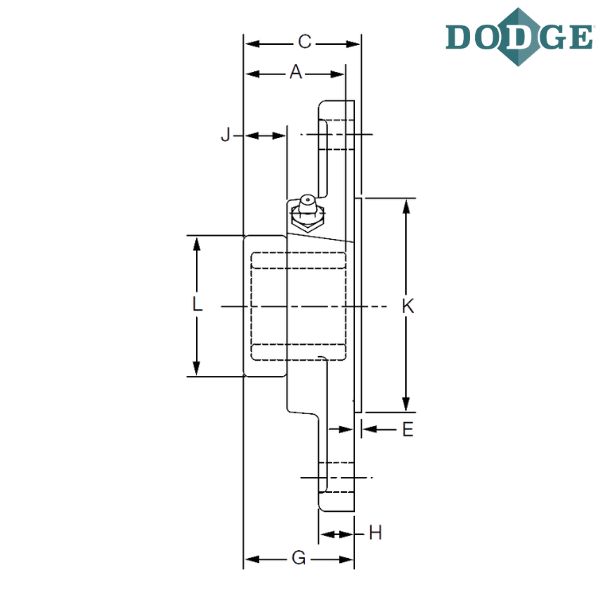

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 7.44
Thickness (C) inch - 2.25
Bolt Center to Center Length (D) inch - 6.19
Pilot Depth (E) inch - 0.16
F-Bolt Diameter (inch) - 0.5
G (inch) - 2.1
H (inch) - 0.63
J (inch) - 0.63
Pilot Diameter (K) inch - 4.134/4.132
L (inch) - 3.24
M (inch) - 4.56
N (inch) - 2.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2-bolt flange with pilot machined on the back side
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
