065770 DODGE - F2BZ-DL-108

Brand - DODGE
Item Number - 065770 DODGE - F2BZ-DL-108
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - F2BZ-DL-108
Weight (lbs) - 4.8

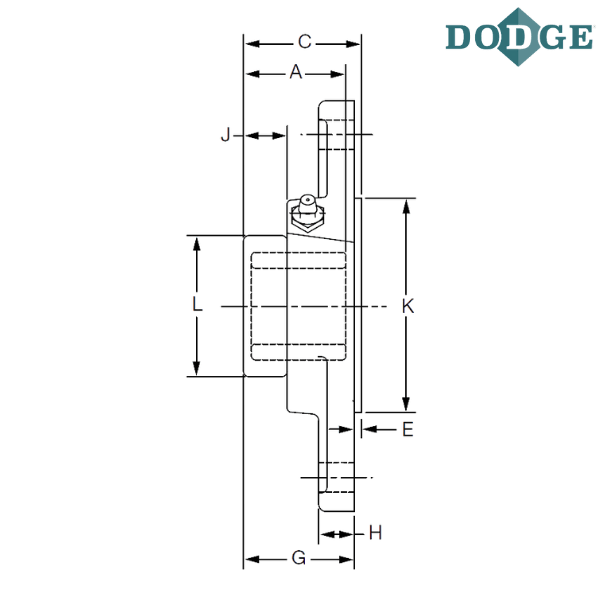

Length Through Bore (A) inch - 2.01

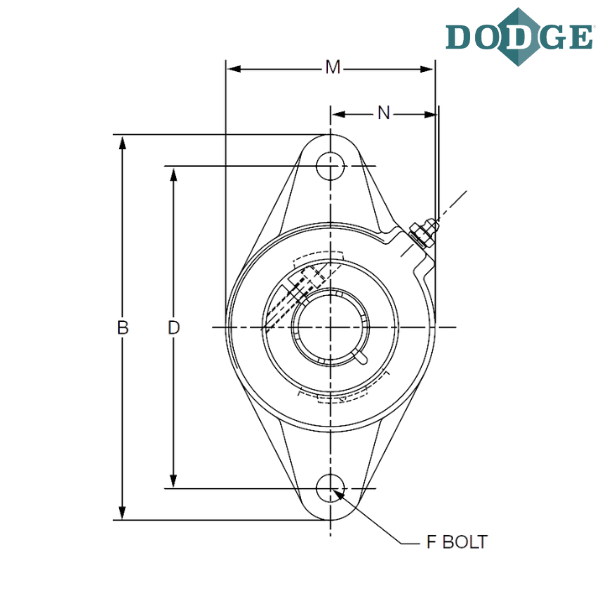

Overall Length (B) inch - 6.75
Thickness (C) inch - 2.2
Bolt Center to Center Length (D) inch - 5.66
Pilot Depth (E) inch - 0.16
F-Bolt Diameter (inch) - 0.5
G (inch) - 2.05
H (inch) - 0.56
J (inch) - 0.7
Pilot Diameter (K) inch - 3.937/3.935
L (inch) - 2.74
M (inch) - 4.13
N (inch) - 1.83
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2-bolt flange with pilot machined on the back side
DL - Wide inner ring, normal duty, concentric clamp collar

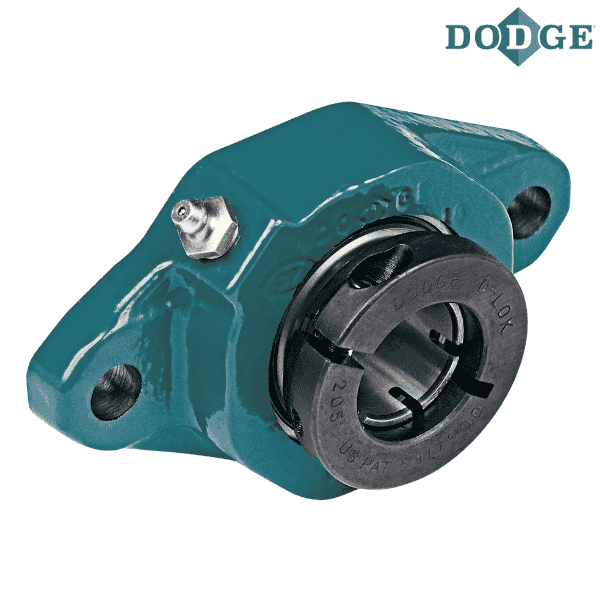

** Images are for representation purposes only
