065700 DODGE - F4B-SC-211-HT

Brand - DODGE
Item Number - 065700 DODGE - F4B-SC-211-HT
Category - High Temperature Setscrew Ball Bearing (4-Bolt Flanges)
Series - 214
Description - F4B-SC-211-HT
Shaft Size (inch) - 2.6875
Weight (lbs) - 15.4

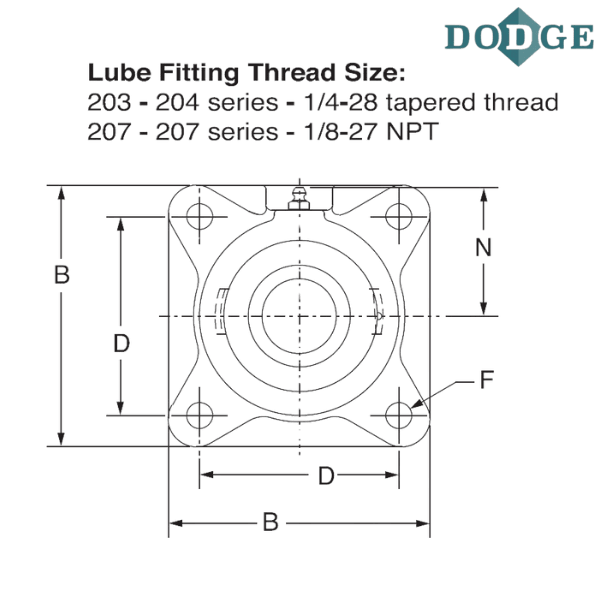

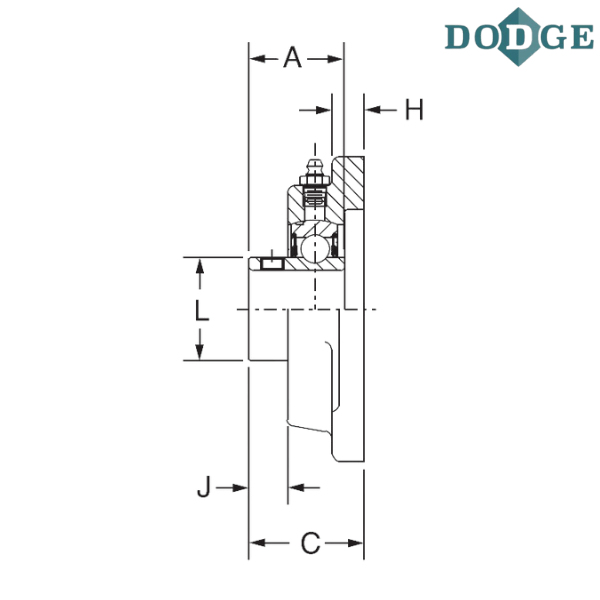

Length Through Bore (A) inch - 2.54
Overall Length (B) inch - 7.38
Thickness (C) inch - 2.78
Bolt Center to Center Length (D) inch - 5.88
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.69
J (inch) - 0.6
L (inch) - 3.31
N (inch) - 3.69

Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

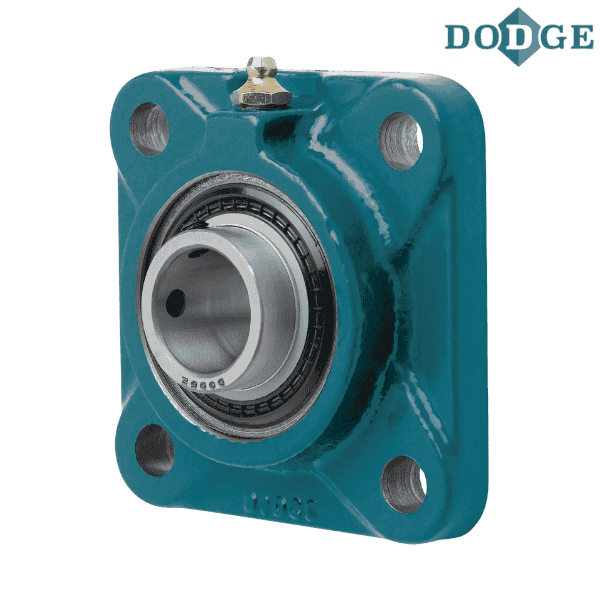

** Images are for representation purposes only
