065694 DODGE - F2B-GTEZ-106-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 065694 DODGE - F2B-GTEZ-106-SHCR
Category - E-Z KLEEN Mounted Bearings (Complete Unit of GTEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.375
Description - F2B-GTEZ-106-SHCR
Part Number (Unit Without Adapter) - 129576
Description (Unit Without Adapter) - F2B-GTEZ-07-SHCR
Part Number (Adapter & Nut Assembly) - 129973
Description (Adapter & Nut Assembly) - AN-GT-07-106-CR
Weight (lbs) - 2.99

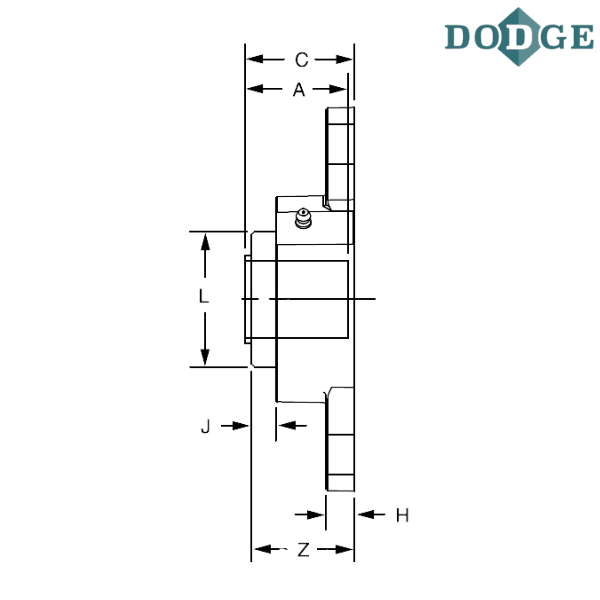

Length Through Bore (A) inch - 1.62
Overall Length (B) inch - 6.18
Thickness (C) inch - 1.8
Bolt Center to Center Length (D) inch - 5.12
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.42
J (inch) - 0.64
L (inch) - 2.38
Overall Width (M) inch - 3.5
Z (inch) - 1.86
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
