Description
Brand - DODGE
Item Number - 065600 DODGE - F4B-SCEZ-014-SHCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Stainless Steel 4-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 0.875
Description - F4B-SCEZ-014-SHCR
Description (With Insert With Flingers) - F4B-SCEZ-014-SH
Weight (lbs) - 1.47

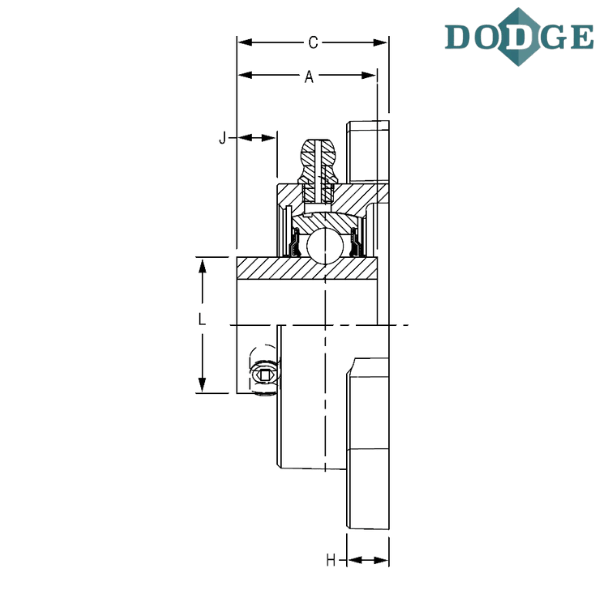

Length Through Bore (A) inch - 1.34
Overall Length (B) inch - 3.75
Thickness (C) inch - 1.37
Bolt Center to Center Length (D) inch - 2.75
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.37
J (inch) - 0.38
L (inch) - 1.32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
