065598 DODGE - P2B-GTH-35M-E

Brand - DODGE
Item Number - 065598 DODGE - P2B-GTH-35M-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - P2B-GTH-35M-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 130698
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-07-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136556
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-07-35M-D
Weight (kg) - 2.1

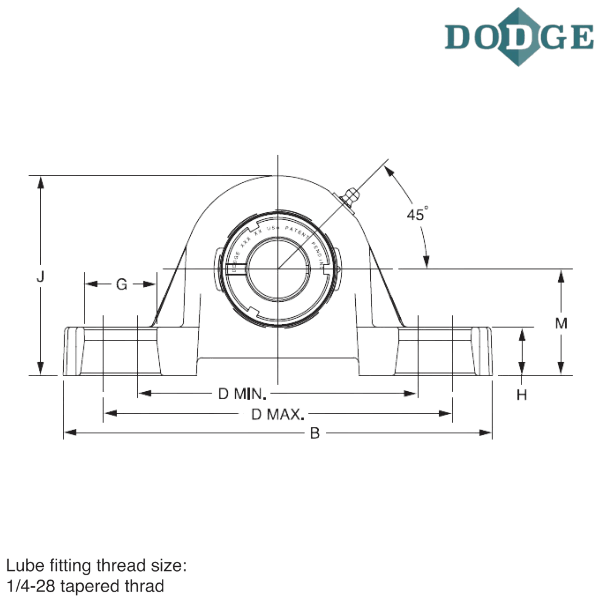

Length Through Bore (A) mm - 41.1
Overall Length (B) mm - 184.2
Width (C) mm - 49
Bolt to Bolt Minimum Distance (D min) mm - 131.6
Bolt to Bolt Maximum Distance (D max) mm - 149.4
F-Bolt Diameter - M12
G (mm) - 23.1
H (mm) - 23.6
Overall Height (J) mm - 106.4
L (mm) - 60.5
Base to Center Height (M) mm - 54.1
R (mm) - 13.7
S (mm) - 27.4
Total Expansion (T) mm - 4.1
U (mm) - 82.8
V (mm) - 165.6
W (mm) - 17.5
X (mm) - 3
Z (mm) - 29
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
E - Expansion

** Images are for representation purposes only
