065597 DODGE - P2B-GTMAH-35M

Brand - DODGE
Item Number - 065597 DODGE - P2B-GTMAH-35M
Category - GRIP TIGHT Adapter Ball Bearings (GMTAH Air Handling Medium Duty Pillow Blocks)
Series - 208
Shaft Size (mm) - 35
Description - P2B-GTMAH-35M
Part Number (Unit without Adapter Sleeve and Nut) - 129445
Description (Unit without Adapter Sleeve and Nut) - P2B-GTAH-08
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136563
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-08-35M-D
Weight (kg) - 2.7

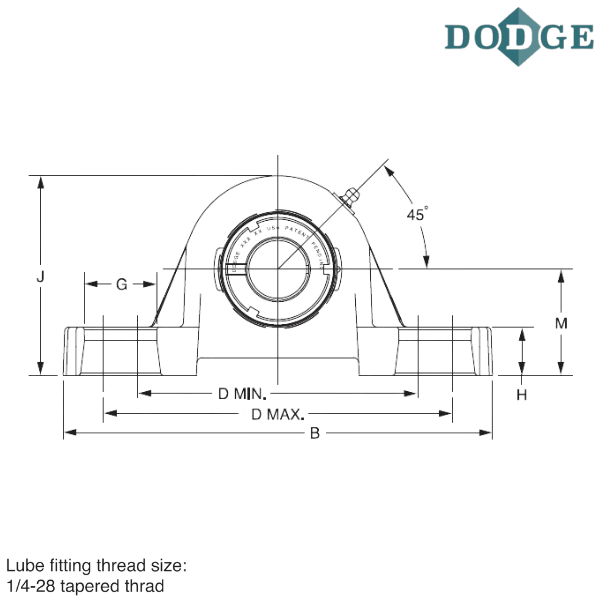

Length Through Bore (A) mm - 46.7
Overall Length (B) mm - 184.2
Width (C) mm - 49
Bolt to Bolt Minimum Distance (D min) mm - 131.6
Bolt to Bolt Maximum Distance (D max) mm - 149.4
F-Bolt Diameter - M12
G (mm) - 23.1
H (mm) - 23.6
Overall Height (J) mm - 106.4
L (mm) - 66.5
Base to Center Height (M) mm - 54
R (mm) - 15.5
S (mm) - 31.2
U (mm) - 82.8
V (mm) - 165.6
W (mm) - 17.5
X (mm) - 3
Z (mm) - 31.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GTM - Wide inner ring, medium duty, thin wall adapter locking
AH - Air Handling
M - Metric

** Images are for representation purposes only
