Description
Brand - DODGE
Item Number - 065569 DODGE - WSTU-DLM-203
Category - D-LOK® Ball Bearings (DLM Medium Duty Wide Slot Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.1875
Description - WSTU-DLM-203
Weight (lbs) - 12.6
Take- Up Frame Size - WS502

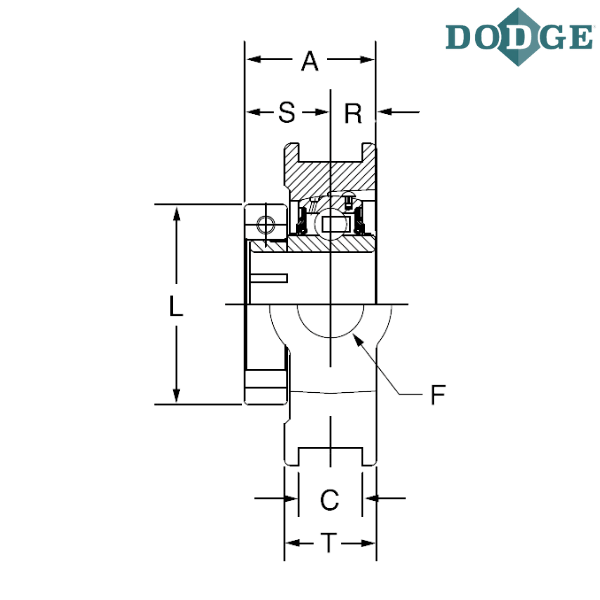

Length Through Bore (A) inch - 2.38

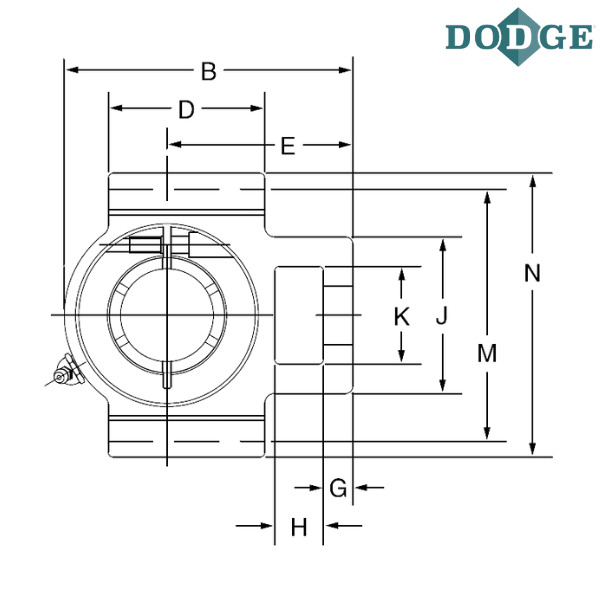

Overall Length (B) inch - 7.5
C (inch) - 1.063
D (inch) - 4
E (inch) - 4.69
F (Screw Diameter) inch - 1.25
G (inch) - 0.75
H (inch) - 1.25
J (inch) - 4
K (inch) - 2.5
L (inch) - 4.11
M (inch) - 5.110/5.140
Overall Width (N) inch - 5.88
R (inch) - 0.9
S (inch) - 1.48
T (inch) - 2.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

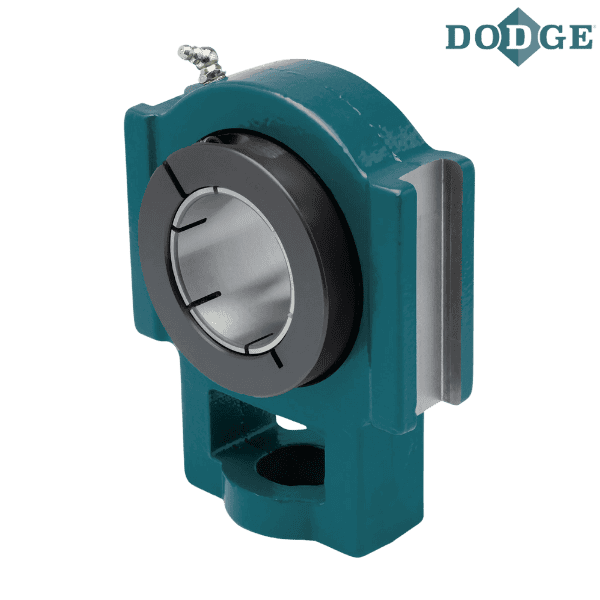

** Images are for representation purposes only
