Description
Brand - DODGE
Item Number - 065555 DODGE - FC-SXR-55M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Piloted Flange Bearings)
Series - 211
Shaft Size (mm) - 55
Description - FC-SXR-55M
Weight (kg) - 3.7

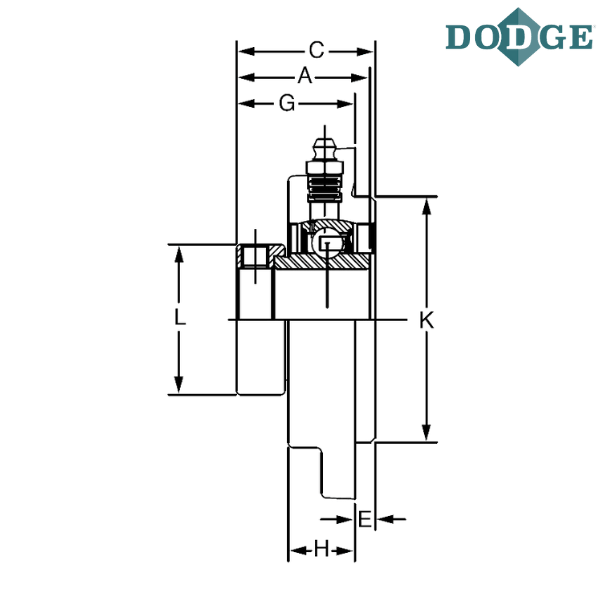

Length Through Bore (A) mm - 65.8

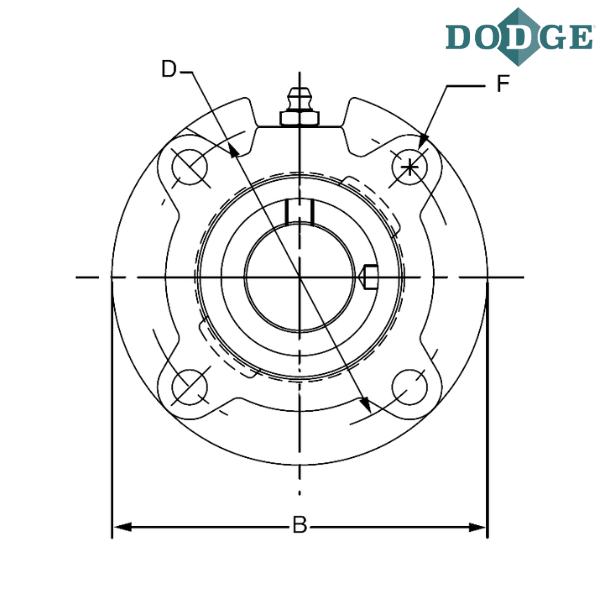

Overall Length (B) mm - 162.1
Thickness (C) mm - 68.8
Bolt Circle (D) mm - 136.7
Pilot Depth (E) mm - 16
F-Bolt Diameter - M12
G (mm) - 53.1
H (mm) - 25.4
Pilot Diameter (K) mm - 4.500/4.498
L (mm) - 76.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

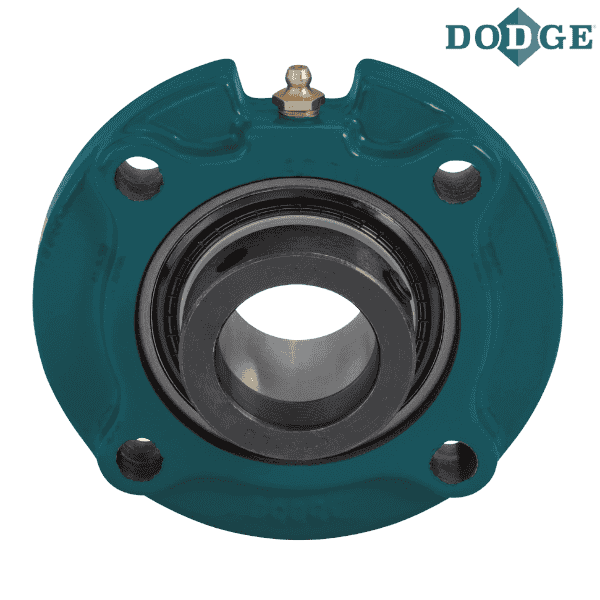

** Images are for representation purposes only
