065313 DODGE - P2B-C-200

Brand - DODGE
Item Number - 065313 DODGE - P2B-C-200
Category - 2-Bolt Base Type C Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 2.0
Part Name - P2B-C-200
Approximate Weight (lbs) - 47

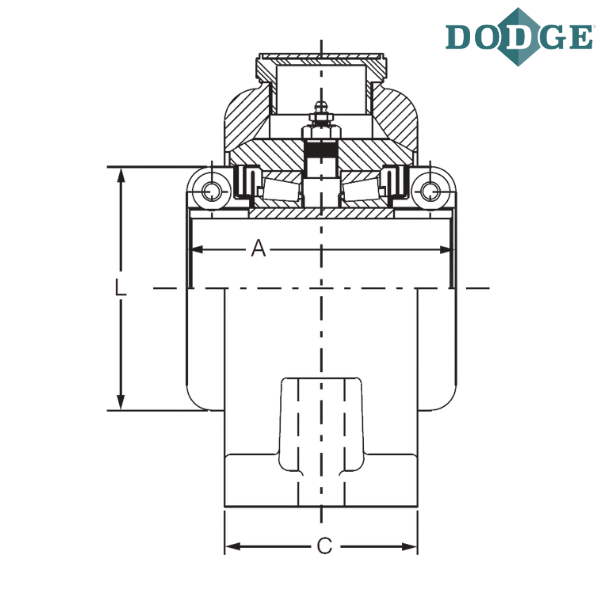

Length Through Bore (A) inch - 5.75

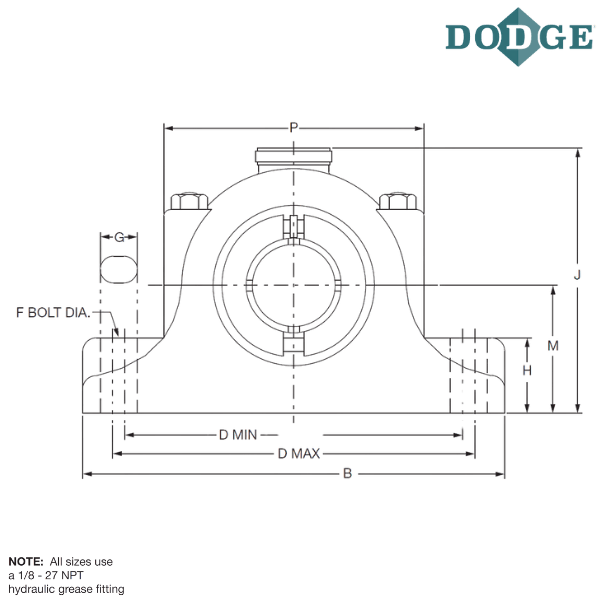

Overall Length (B*) inch - 12
C * (inch) - 4
Bolt to Bolt Minimum Distance (D min) inch - 9.25
Bolt to Bolt Maximum Distance (D max) inch - 10.25
F-Bolt Diameter (inch) - 0.625
G * (inch) - 1.18
H * (inch) - 2.88
Overall Height (J) inch - 8.00
L *** (inch) - 4.38
Base to Center Height (M) inch - 3.75
P * (inch) - 8.00
EXP ** (inch) - 0.625
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
C - Type C

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only
*** A one-piece collar furnished up Thru 2-7/16 sizes. Larger sizes use a two-piece collar

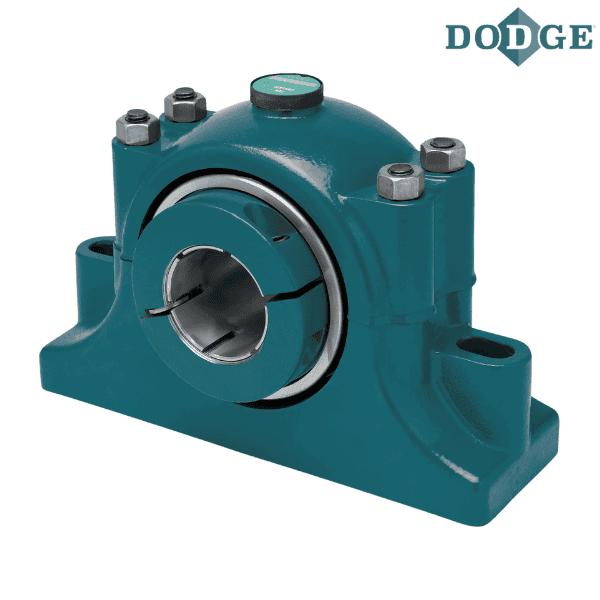

**** Images are for representation purposes only
