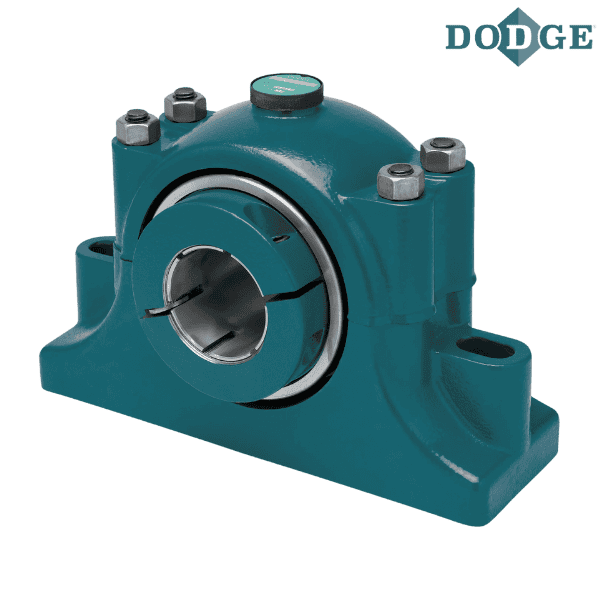

065311 DODGE - P2B-C-104

Brand - DODGE
Item Number - 065311 DODGE - P2B-C-104
Category - 2-Bolt Base Type C Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 1.25
Part Name - P2B-C-104
Approximate Weight (lbs) - 20

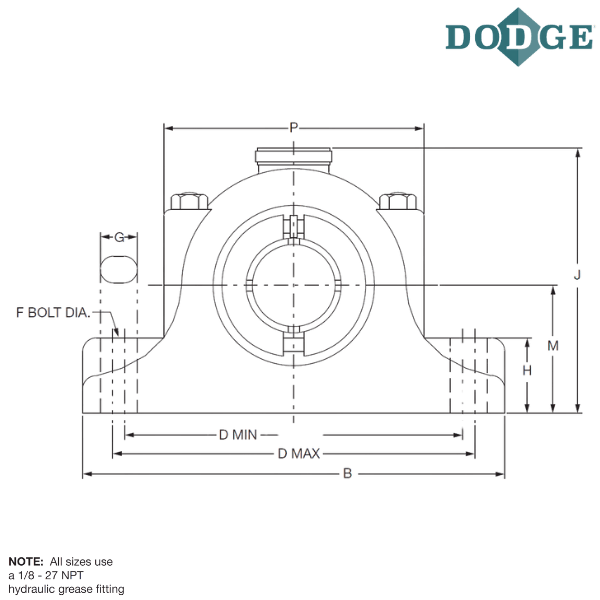

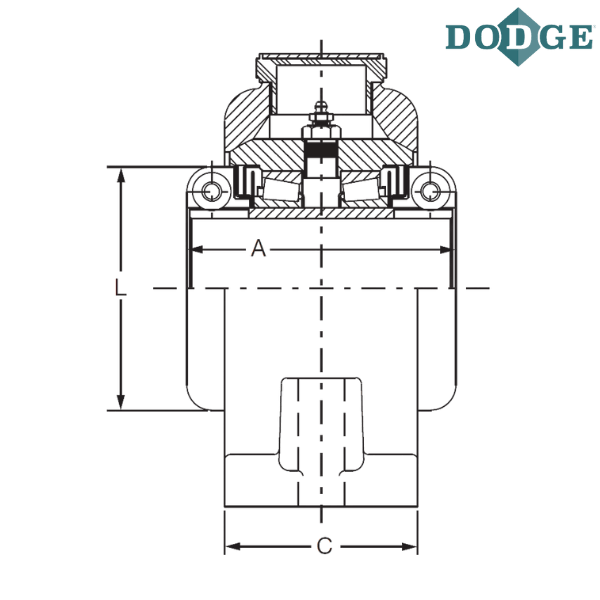

Length Through Bore (A) inch - 4.5
Overall Length (B*) inch - 9
C * (inch) - 3
Bolt to Bolt Minimum Distance (D min) inch - 6.88
Bolt to Bolt Maximum Distance (D max) inch - 7.63
F-Bolt Diameter (inch) - 0.5
G * (inch) - 1.00
H * (inch) - 2.13
Overall Height (J) inch - 6.25
L *** (inch) - 3.09
Base to Center Height (M) inch - 2.88
P * (inch) - 5.88
EXP ** (inch) - 0.1875
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
C - Type C

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only
*** A one-piece collar furnished up Thru 2-7/16 sizes. Larger sizes use a two-piece collar

**** Images are for representation purposes only
