Description
Brand - DODGE
Item Number - 065306 DODGE - DU-C-415
Category - Type C Units - Inch (D Units)
Shaft Size (inch) - 4.9375
Part Name - DU-C-415
Approximate Weight (lbs) - 190

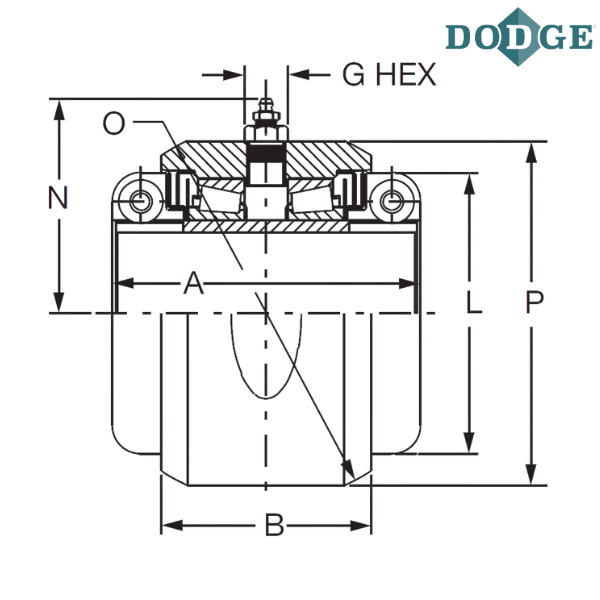

Length Through Bore (A) inch - 11.25
B (inch) - 7.38
Hex (G) inch - 0.75
L (inch) - 9.38
N (inch) - 7.44
O** (inch) - 12.5
P (inch) - 11.88
Maximum Speed - Available on Request
Notes :
DU - D Unit, Cast Iron
C - Type C
D Unit - Used in Non-Expansion Housings
** + .000 - .002

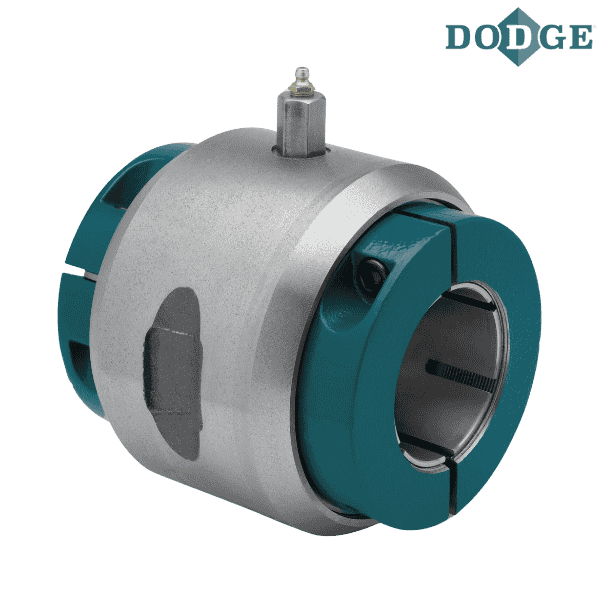

*** Images are for representation purposes only
