Description
Brand - DODGE
Item Number - 065305 DODGE - DU-C-407
Category - Type C Units - Inch (D Units)
Shaft Size (inch) - 4.4375
Part Name - DU-C-407
Approximate Weight (lbs) - 138

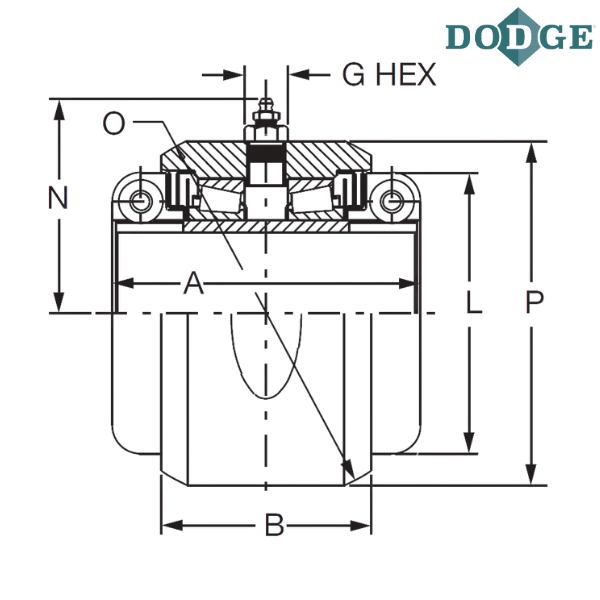

Length Through Bore (A) inch - 10
B (inch) - 6.63
Hex (G) inch - 0.75
L (inch) - 8.38
N (inch) - 6.89
O** (inch) - 11.125
P (inch) - 10.38
Maximum Speed - Available on Request
Notes :
DU - D Unit, Cast Iron
C - Type C
D Unit - Used in Non-Expansion Housings
** + .000 - .002

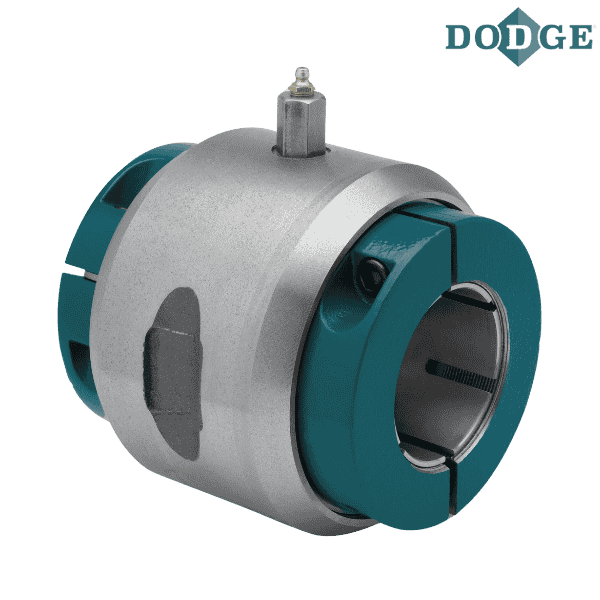

*** Images are for representation purposes only
