Description

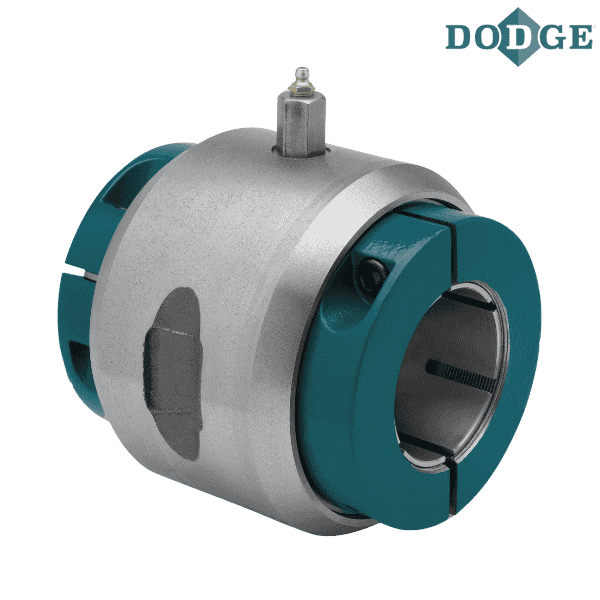

Brand - DODGE
Item Number - 065304 DODGE - DU-C-315
Category - Type C Units - Inch (D Units)
Shaft Size (inch) - 3.9375
Part Name - DU-C-315
Approximate Weight (lbs) - 115

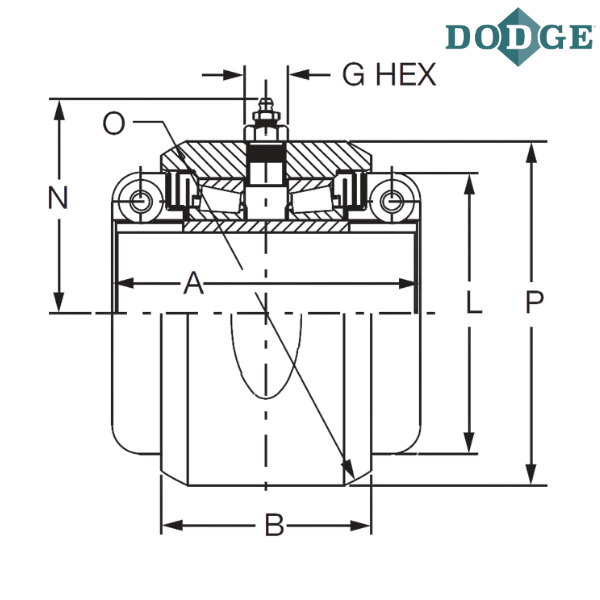

Length Through Bore (A) inch - 9.5
B (inch) - 6.25
Hex (G) inch - 0.625
L (inch) - 7.38
N (inch) - 6.38
O** (inch) - 10.25
P (inch) - 9.75
Maximum Speed - Available on Request
Notes :
DU - D Unit, Cast Iron
C - Type C
D Unit - Used in Non-Expansion Housings
** + .000 - .002
*** Images are for representation purposes only
