065302 DODGE - P4B-C-215

Brand - DODGE
Item Number - 065302 DODGE - P4B-C-215
Category - 4-Bolt Base Type C Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 2.9375
Part Name - P4B-C-215
Approximate Weight (lbs) - 85

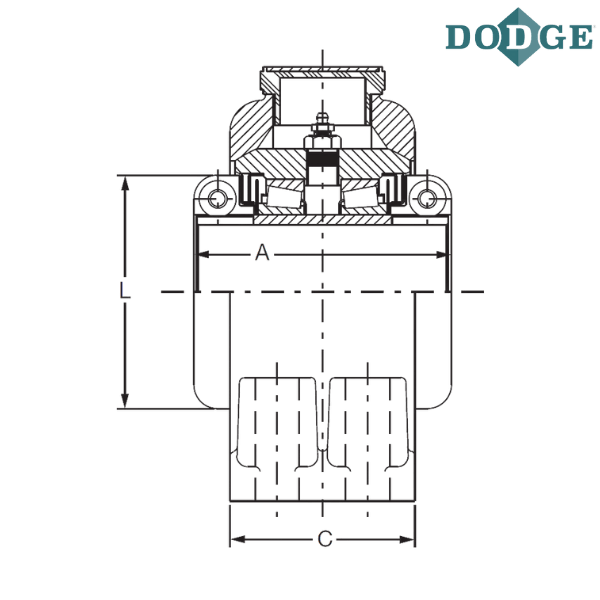

Length Through Bore (A) inch - 6.5

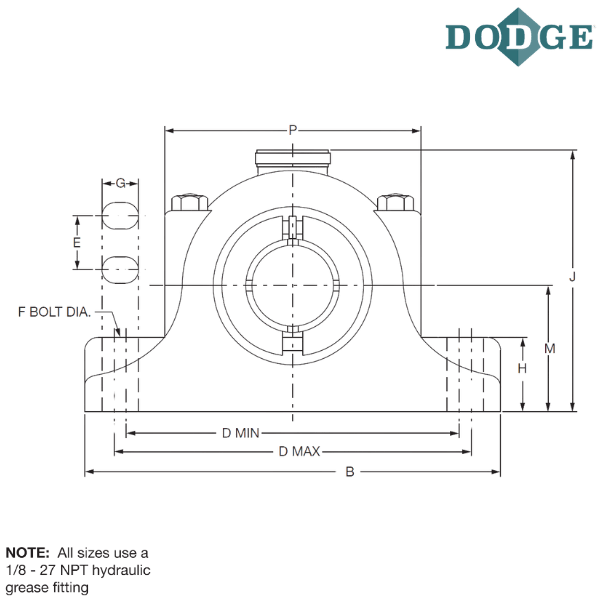

Overall Length (B *) inch - 14.25
C * (inch) - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 11
Bolt to Bolt Maximum Distance (D max) inch - 12.5
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.625
G * (inch) - 1.5
H * (inch) - 3.75
Overall Height (J) inch - 9.88
L *** (inch) - 5.44
Base to Center Height (M) inch - 4.75
P * (inch) - 9.88
EXP ** (inch) - 0.625
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
C - Type C

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only
*** A one-piece collar furnished up Thru 2-7/16 sizes. Larger sizes use a two-piece collar

**** Images are for representation purposes only
