065300 DODGE - P4B-C-415

Brand - DODGE
Item Number - 065300 DODGE - P4B-C-415
Category - 4-Bolt Base Type C Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 4.9375
Part Name - P4B-C-415
Approximate Weight (lbs) - 370

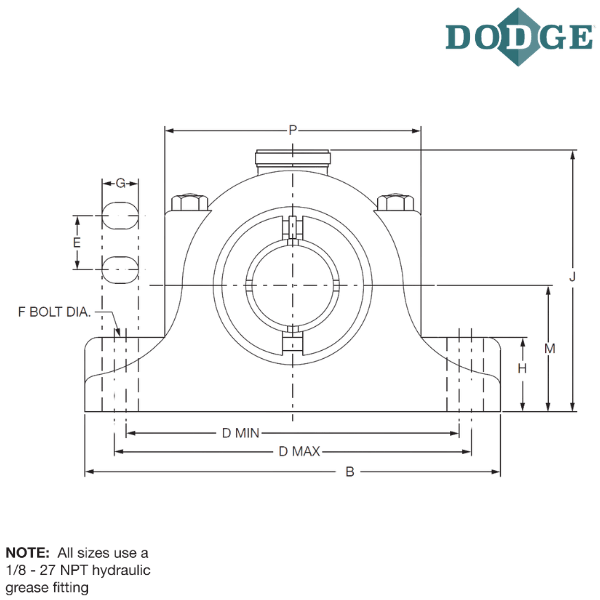

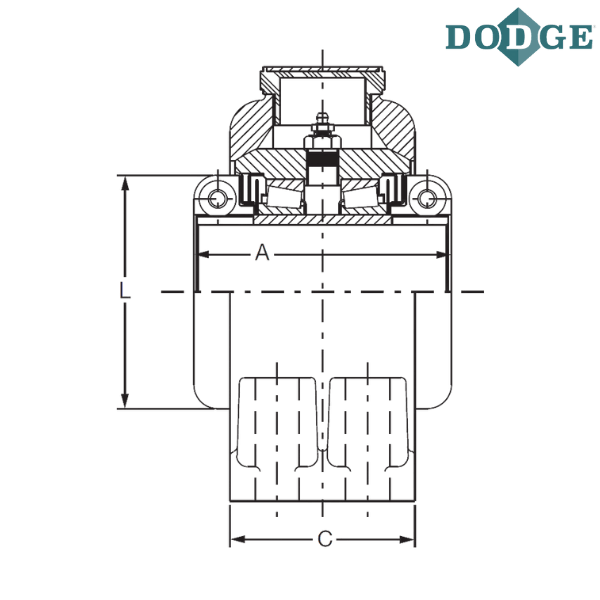

Length Through Bore (A) inch - 11.25
Overall Length (B *) inch - 23
C * (inch) - 8.25
Bolt to Bolt Minimum Distance (D min) inch - 17.75
Bolt to Bolt Maximum Distance (D max) inch - 19.75
E (inch) - 3.75
F-Bolt Diameter (inch) - 1
G * (inch) - 2.13
H * (inch) - 4.25
Overall Height (J) inch - 15.63
L *** (inch) - 9.38
Base to Center Height (M) inch - 7.5
P * (inch) - 16.75
EXP ** (inch) - 0.75
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
C - Type C

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only
*** A one-piece collar furnished up Thru 2-7/16 sizes. Larger sizes use a two-piece collar

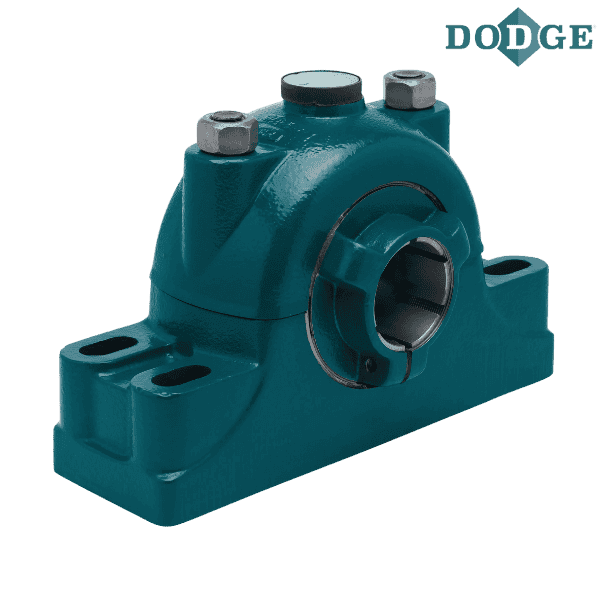

**** Images are for representation purposes only
