065294 DODGE - P2B-C-207

Brand - DODGE
Item Number - 065294 DODGE - P2B-C-207
Category - 2-Bolt Base Type C Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 2.4375
Part Name - P2B-C-207
Approximate Weight (lbs) - 57

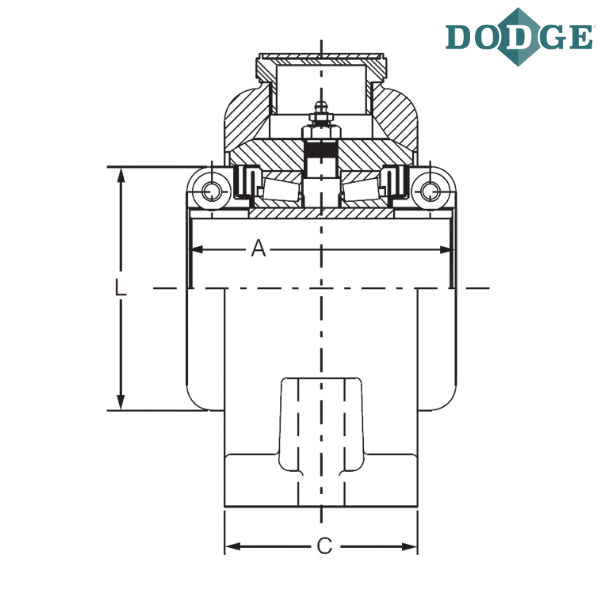

Length Through Bore (A) inch - 6
Overall Length (B*) inch - 13.25
C * (inch) - 4.25
Bolt to Bolt Minimum Distance (D min) inch - 10.13
Bolt to Bolt Maximum Distance (D max) inch - 11.38
F-Bolt Diameter (inch) - 0.75
G * (inch) - 1.50
H * (inch) - 3.00
Overall Height (J) inch - 8.56
L *** (inch) - 4.66
Base to Center Height (M) inch - 4.00
P * (inch) - 8.88
EXP ** (inch) - 0.625
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
C - Type C

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only
*** A one-piece collar furnished up Thru 2-7/16 sizes. Larger sizes use a two-piece collar

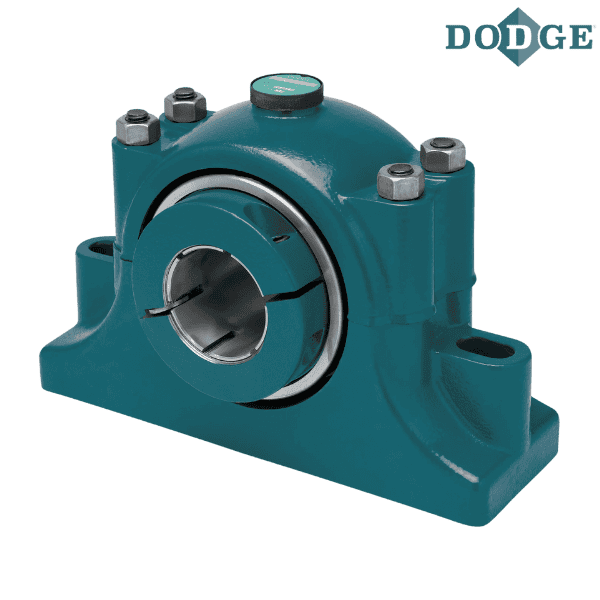

**** Images are for representation purposes only
