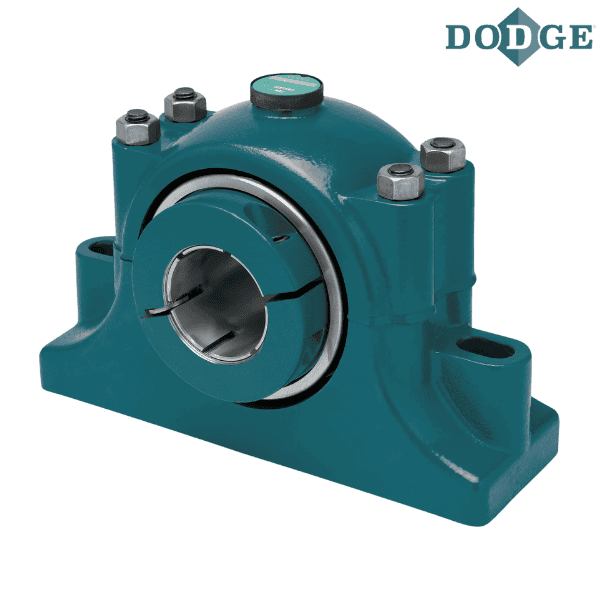

065292 DODGE - P2B-C-115

Brand - DODGE
Item Number - 065292 DODGE - P2B-C-115
Category - 2-Bolt Base Type C Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 1.9375
Part Name - P2B-C-115
Approximate Weight (lbs) - 29

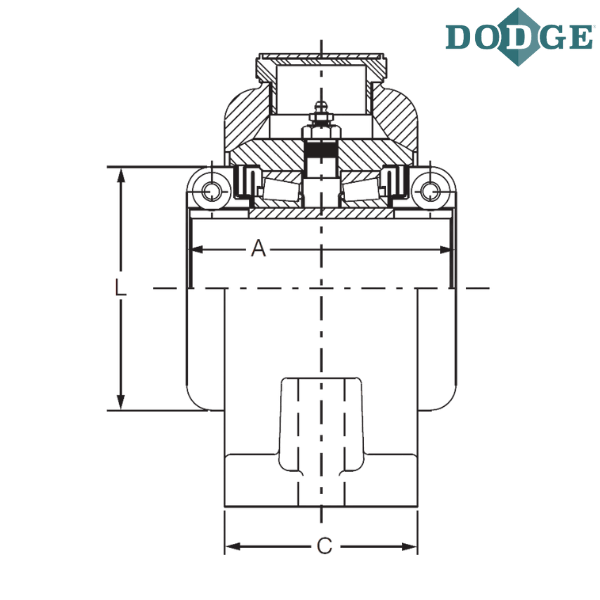

Length Through Bore (A) inch - 5.25

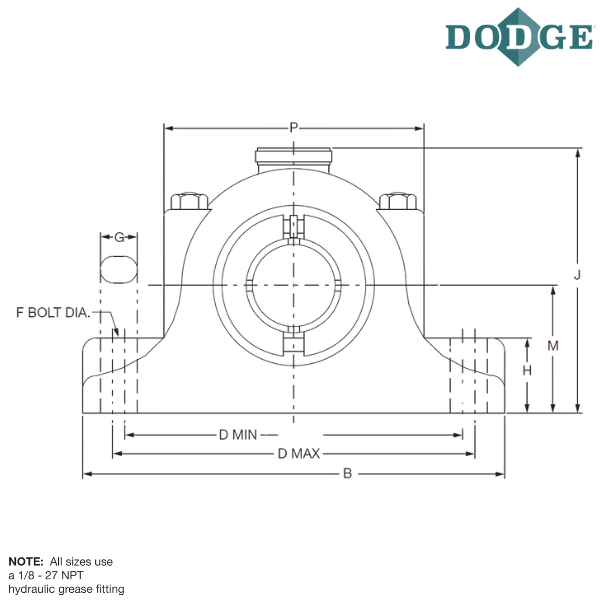

Overall Length (B*) inch - 11
C * (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 8.5
Bolt to Bolt Maximum Distance (D max) inch - 9.00
F-Bolt Diameter (inch) - 0.625
G * (inch) - 1.25
H * (inch) - 2.50
Overall Height (J) inch - 7.13
L *** (inch) - 3.88
Base to Center Height (M) inch - 3.25
P * (inch) - 7.38
EXP ** (inch) - 0.625
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
C - Type C

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only
*** A one-piece collar furnished up Thru 2-7/16 sizes. Larger sizes use a two-piece collar

**** Images are for representation purposes only
