Description
Brand - DODGE

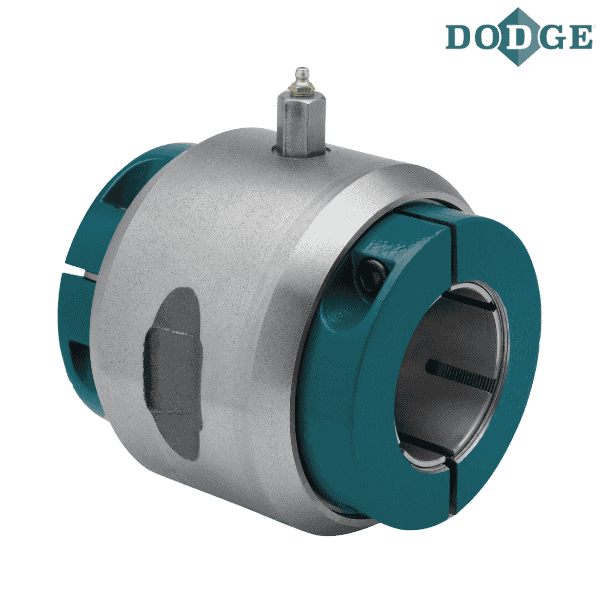

Item Number - 065282 DODGE - DU-C-107
Category - Type C Units - Inch (D Units)
Shaft Size (inch) - 1.4375
Part Name - DU-C-107
Approximate Weight (lbs) - 7

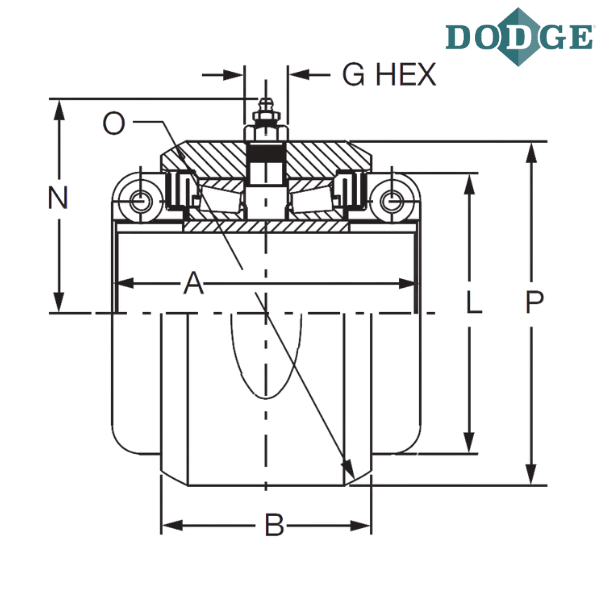

Length Through Bore (A) inch - 4.5
B (inch) - 2.69
Hex (G) inch - 0.4375
L (inch) - 3.09
N (inch) - 2.5
O** (inch) - 4.438
P (inch) - 3.94
Maximum Speed - Available on Request
Notes :
DU - D Unit, Cast Iron
C - Type C
D Unit - Used in Non-Expansion Housings
** + .000 - .002
*** Images are for representation purposes only
