Description
Brand - DODGE
Item Number - 065271 DODGE - DU-C-300
Category - Type C Units - Inch (D Units)
Shaft Size (inch) - 3
Part Name - DU-C-300
Approximate Weight (lbs) - 55

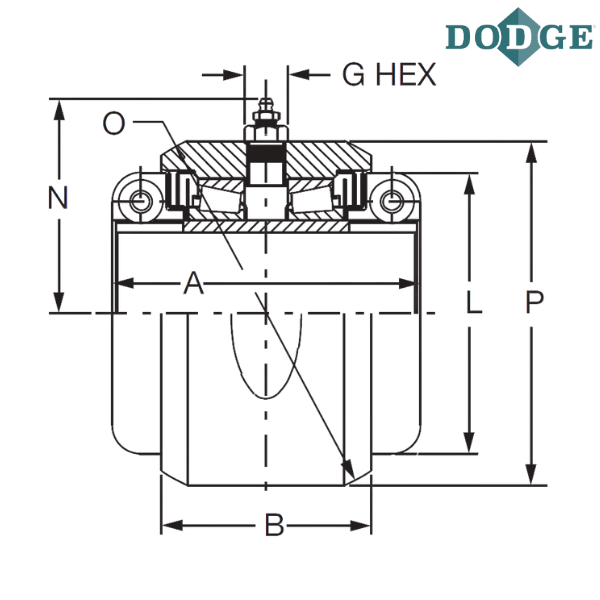

Length Through Bore (A) inch - 7
B (inch) - 5
Hex (G) inch - 0.625
L (inch) - 5.94
N (inch) - 5.56
O** (inch) - 8.625
P (inch) - 7.91
Maximum Speed - Available on Request
Notes :
DU - D Unit, Cast Iron
C - Type C
D Unit - Used in Non-Expansion Housings
** + .000 - .002
*** Images are for representation purposes only
