Description
Brand - DODGE
Item Number - 065268 DODGE - DU-C-211
Category - Type C Units - Inch (D Units)
Shaft Size (inch) - 2.6875
Part Name - DU-C-211
Approximate Weight (lbs) - 34

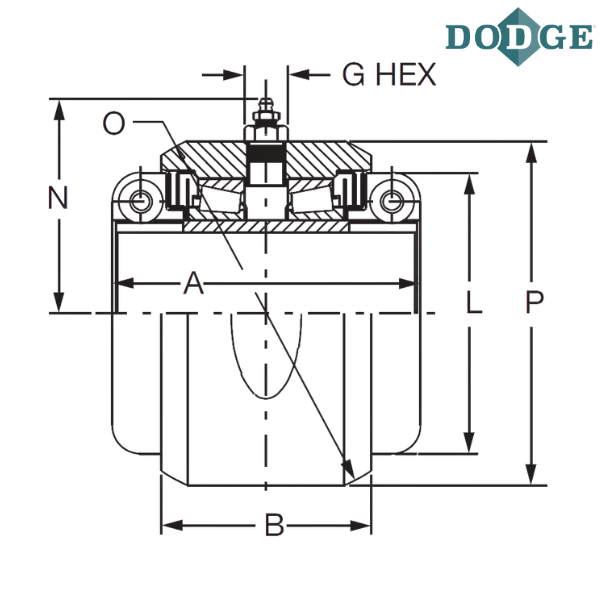

Length Through Bore (A) inch - 6.5
B (inch) - 4.44
Hex (G) inch - 0.625
L (inch) - 5.44
N (inch) - 4.5
O** (inch) - 7.312
P (inch) - 6.5
Maximum Speed - Available on Request
Notes :
DU - D Unit, Cast Iron
C - Type C
D Unit - Used in Non-Expansion Housings
** + .000 - .002

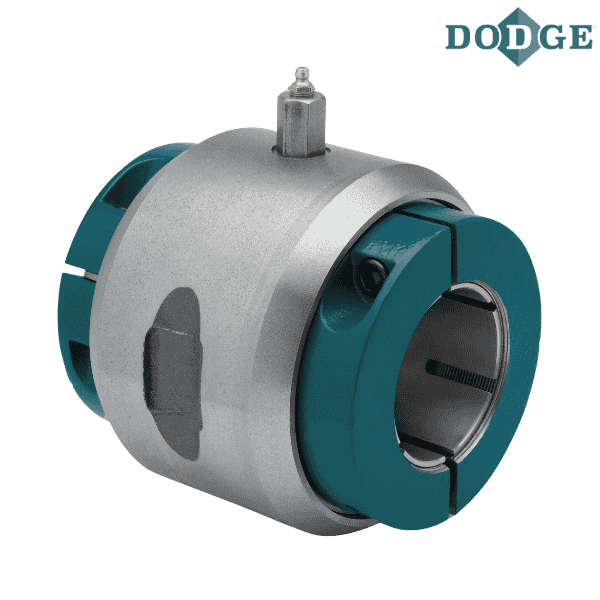

*** Images are for representation purposes only
