Description
Brand - DODGE
Item Number - 065262 DODGE - DU-C-200
Category - Type C Units - Inch (D Units)
Shaft Size (inch) - 2
Part Name - DU-C-200
Approximate Weight (lbs) - 18

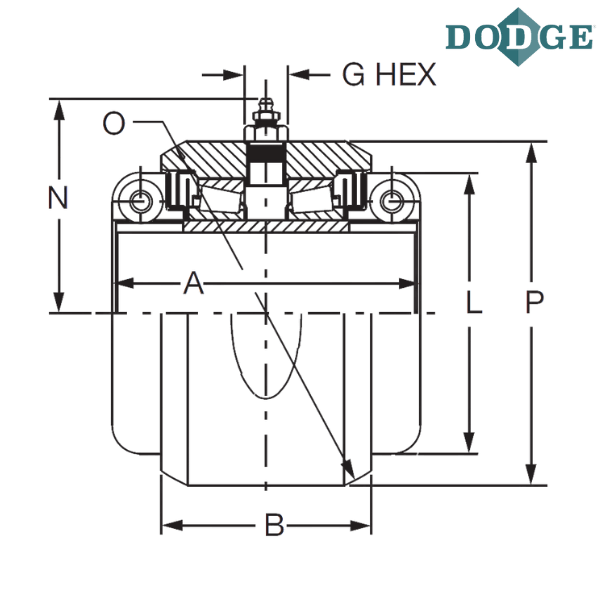

Length Through Bore (A) inch - 5.75
B (inch) - 3.75
Hex (G) inch - 0.4375
L (inch) - 4.38
N (inch) - 3.19
O** (inch) - 6
P (inch) - 5.38
Maximum Speed - Available on Request
Notes :
DU - D Unit, Cast Iron
C - Type C
D Unit - Used in Non-Expansion Housings
** + .000 - .002

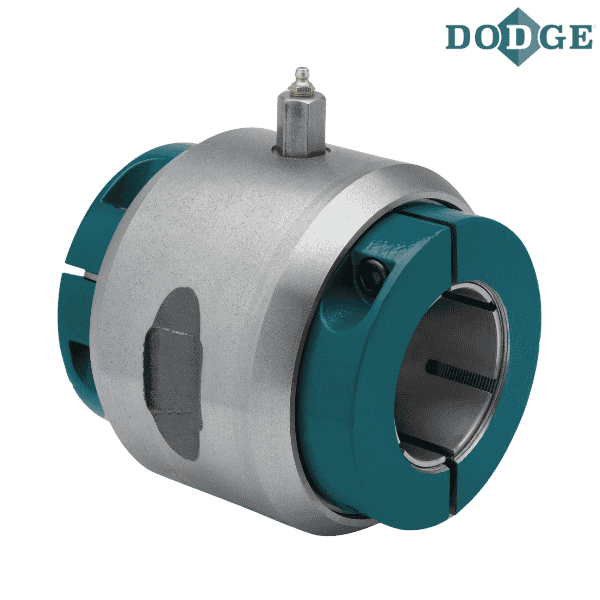

*** Images are for representation purposes only
