Description
Brand - DODGE
Item Number - 065258 DODGE - DU-C-108
Category - Type C Units - Inch (D Units)
Shaft Size (inch) - 1.5
Part Name - DU-C-108
Approximate Weight (lbs) - 11

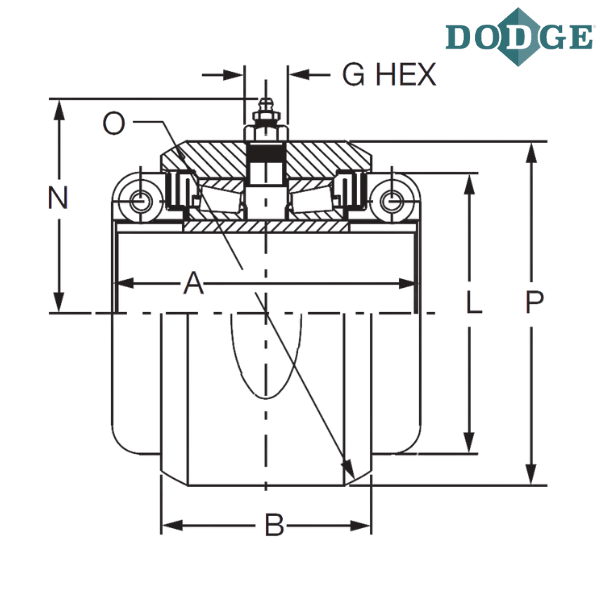

Length Through Bore (A) inch - 4.88
B (inch) - 3.13
Hex (G) inch - 0.4375
L (inch) - 3.5
N (inch) - 2.75
O** (inch) - 5
P (inch) - 4.5
Maximum Speed - Available on Request
Notes :
DU - D Unit, Cast Iron
C - Type C
D Unit - Used in Non-Expansion Housings
** + .000 - .002

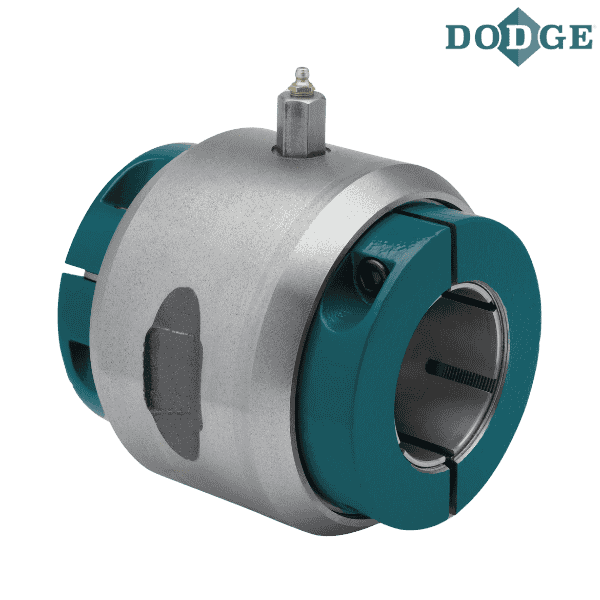

*** Images are for representation purposes only
