065238 DODGE - P2B-C-112

Brand - DODGE
Item Number - 065238 DODGE - P2B-C-112
Category - 2-Bolt Base Type C Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 1.75
Part Name - P2B-C-112
Approximate Weight (lbs) - 26

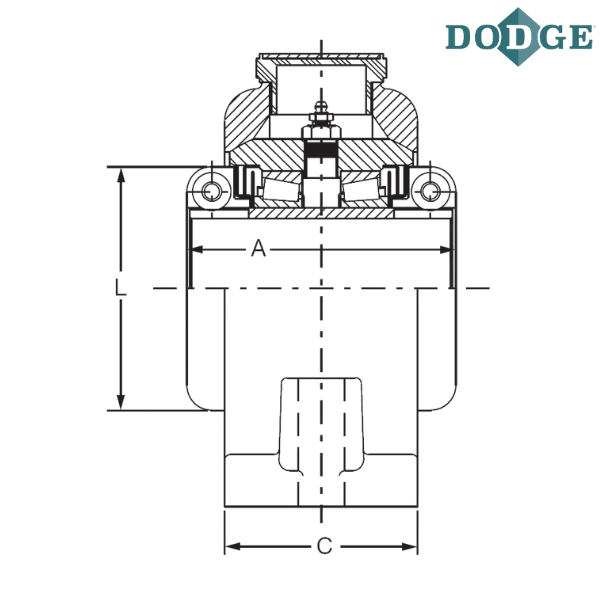

Length Through Bore (A) inch - 4.88
Overall Length (B*) inch - 9.5
C * (inch) - 3.38
Bolt to Bolt Minimum Distance (D min) inch - 7.38
Bolt to Bolt Maximum Distance (D max) inch - 8.13
F-Bolt Diameter (inch) - 0.5
G * (inch) - 0.81
H * (inch) - 2.38
Overall Height (J) inch - 6.81
L *** (inch) - 3.50
Base to Center Height (M) inch - 3.13
P * (inch) - 6.50
EXP ** (inch) - 0.625
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
C - Type C

* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only
*** A one-piece collar furnished up Thru 2-7/16 sizes. Larger sizes use a two-piece collar

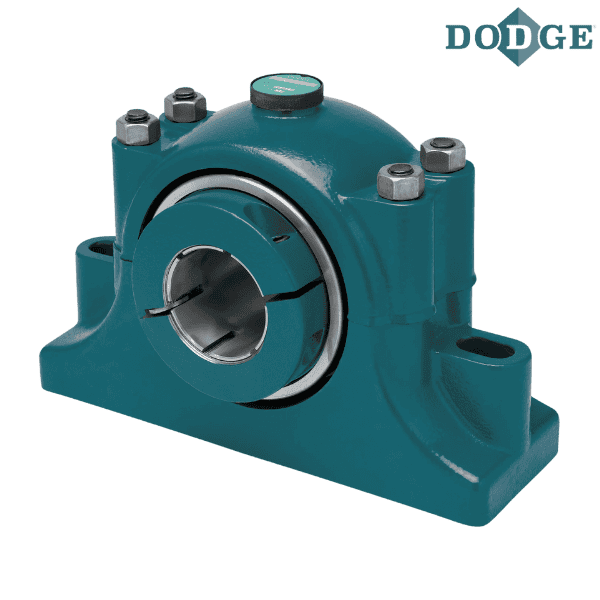

**** Images are for representation purposes only
